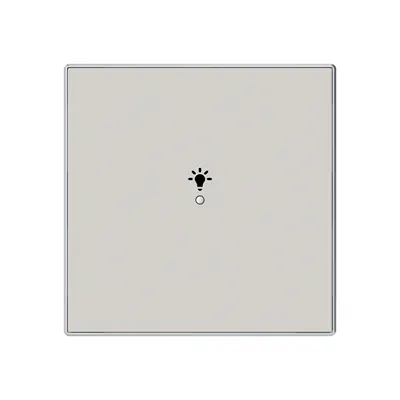

ABB 2CLA852626A6201 Cover F@h Light Symbol - IP20
Part Number: 2CLA852626A6201
Quick Summary
The ABB 2CLA852626A6201 Cover F@h Light Symbol is a 1-gang decorative cover plate for KNX and free@home sensors and actuators that provides an illuminated status indicator. Engineers often struggle to quickly identify active signals on wall plates in complex automation scenes, leading to misoperations, longer commissioning cycles, and higher risk of human error during handoffs. The unit delivers IP20 protection, RoHS compliance, and WEEE stewardship while supporting Sky Niessen and KNX ecosystems with a 1-gang footprint and durable plastic Thermoplastic construction. Its clamp mounting simplifies retrofits and new installs alike, reducing installation time, accelerating project timelines, and delivering consistent, standards-compliant performance across commercial and residential automation projects.
Product Information
Extended Description
2CLA852626A6201 ABB: Color: Duna .
Cover plate for free@home sensors and sensor/actuators with 1-gang sensors code: SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1, SU-F-1.0.1-WL, SSA-F-1.1.1-WL, SDA-F-1.1.1-WL, SBA-F-1.1.1-WL.
Cover plate for KNX 1-gang sensors code: 6108/06-500.
With Light symbol.
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Sky New Colours A
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Switch/push button
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Symbol "light"
Color
Dune
Product Net Width
0.073 m
Product Net Height
0.033 m
Product Net Depth / Length
0.073 m
RoHS Information
2CLA852626A6201_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
96068919-8aea-420d-ae80-0e53f997f9c4 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Zenit short video | Sky Niessen new finishings short | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Feature: Illuminated symbol for clear status indication on KNX and free@home interfaces. Business Impact: improves operator confidence, reduces misreads, and speeds fault isolation during commissioning. Application: designed as a 1-gang cover plate for Sky Niessen and KNX sensor/actuator nodes, including the listed sensor codes SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1 with a light symbol. Design and materials: Color Dune, decor matt finish, Thermoplastic, with dimensions 0.073 m width, 0.033 m height, 0.073 m depth; IP20 protection; clamp fastening; operation -5 to +35 °C. Application focus: Sky Niessen installations and KNX sensor nodes, aligned with 6108/06-500 and KNX 1-gang standards for reliable signaling. Installation efficiency: clamp mounting reduces retrofit time and supports quick onboarding for both new builds and renovations in commercial and residential automation. Compliance and sustainability: RoHS and WEEE compliant, aligning with EU directives and modern regulatory expectations, while maintaining aesthetic consistency in multi-device control panels. Lifecycle and maintenance: durable Thermoplastic construction with no battery requirements, designed for long service in indoor environments.
Get a Quick Quote for a ABB 2CLA852626A6201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852626A6201?
Enquire Now
FAQs
To install, detach the existing switch plate, align the 1-gang cover on the KNX or free@home sensor module, and snap it into place using the clamp fastening. It accommodates 1-gang configurations and KNX/ Sky Niessen sensor codes; no batteries are required. Ensure proper faceplate alignment to maintain the light symbol visibility and verify electrical isolation per catalogue 2018 guidelines.
Certification and standards for this cover include IP20 protection, RoHS compliance, and WEEE stewardship. It follows EU Directive 2011/65/EU with Amendment 2015/863, and is listed in SCIP for responsible material management. The product also aligns with ETIM EC000011 and UNSPSC 39121704, supporting consistent data sharing for procurement and compliance reporting.
Yes. It is designed as a 1-gang cover plate for KNX and Sky Niessen systems, with KNX 1-gang sensors code: 6108/06-500 and support for free@home sensor/actuator codes SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1 (and WL variants). It fits within the Sky Niessen design range and KNX installation practices.
Operating ambient temperature is -5 to +35 °C with storage from -5 to +50 °C. The product features IP20 protection and a clamp mounting method, designed for easy retrofits and quick installations in both new-build and renovation projects within commercial and residential automation.
Illuminated covers provide immediate visual feedback, reducing misreads and commissioning time. They enhance operator confidence, lower risk of human error, and support faster project timelines while maintaining regulatory compliance and aesthetic consistency across KNX and Sky Niessen installations.
