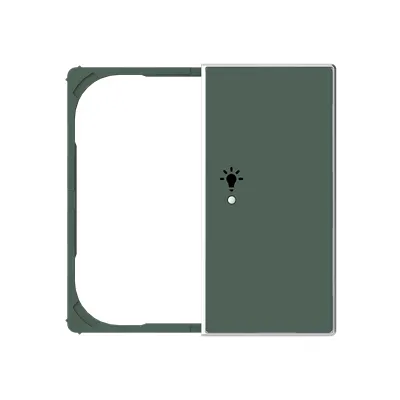

ABB 2CLA852642A1901 Cover F@h Symbol light - IP20
Part Number: 2CLA852642A1901
Quick Summary
2CLA852642A1901 is a cover for Sky Niessen switches that signals a light symbol in control panels. In retrofit projects, achieving consistent finish and reliable indicator visibility is a common challenge. This part is RoHS compliant, IP20 rated for indoor use, and categorized for WEEE; it also aligns with SCIP reporting for supply chain transparency. Designed for Sky Niessen control devices, it simplifies installation, preserves aesthetic consistency, and reduces sourcing risk across multiple enclosures. By standardizing the appearance of status indicators, maintenance becomes faster and training for technicians improves, delivering measurable cost and downtime reductions for panel builders and OEMs. Additionally, its clamp fastening supports quick replacement without panel rewiring, speeding commissioning.
Product Information
Extended Description
2CLA852642A1901 ABB: Color: Comodoro Cover sensor F@H Sky 2C symbol light
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Sky New Colours A
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Switch/push button
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Symbol "light"
Color
Black
Product Net Width
0.073 m
Product Net Height
0.033 m
Product Net Depth / Length
0.073 m
RoHS Information
2CLA852642A1901_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ef82a645-b1b8-4fad-afe4-539214b10380 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Zenit short video | Sky Niessen new finishings short | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Feature: Symbol light legend on the cover provides immediate status indication. Business Impact: Enhanced operator awareness reduces fault-diagnosis time and misoperation, particularly in busy control rooms. Application: Ideal for Sky Niessen switch/push-button modules in machine rooms and process lines where clear signaling improves uptime. Feature: Clamp fastening design enables quick, tool-free installation and straightforward retrofits. Business Impact: Reduces commissioning time and component handling risk during panel upgrades. Application: Fits standard 81XX wiring diagrams and common Sky Niessen assemblies. Feature: Matt black decor and thermoplastic material deliver a durable, low-profile finish. Business Impact: Maintains aesthetic uniformity across panels while resisting daily wear. Application: Indoor control panels requiring a modern, maintenance-friendly surface. Feature: RoHS and WEEE compliant with SCIP registration. Business Impact: Lowers regulatory and disposal risk, simplifying European project compliance. Application: Projects in EU markets with strict environmental requirements. Feature: Precise dimensions for reliable fit and compatibility. Business Impact: Ensures seamless integration with Sky Niessen 2C symbols and related switches. Application: Retrofit or new-build installations in compact enclosures.
Get a Quick Quote for a ABB 2CLA852642A1901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852642A1901?
Enquire Now
FAQs
To install, align the cover with the Sky Niessen switch/push-button assembly and use the clamp fastening as specified. Confirm the symbol light legend is oriented for readability and ensure there is no interference with wiring. Refer to the 81XX wiring diagrams for correct wiring diagrams during retrofit.
Best suited for indoor control panels and machine enclosures using Sky Niessen switches. It is ideal for retrofits where a consistent black matte finish and visible light symbol improve operator awareness and reduce misoperation in busy industrial environments.
Yes. The part is RoHS compliant (EU directives 2011/65/EU and 2015/863) and WEEE categorized, with SCIP registration for Spain. This helps ensure regulatory compliance across European installations and simplifies end-of-life reporting for panel builders.
The cover is made of plastic thermoplastic with a matte finish in black. Product net width and depth are 0.073 m, and net height is 0.033 m, designed to fit Sky Niessen 2C switch assemblies while maintaining a compact footprint in panels.
The cover improves status visibility, reduces fault-diagnosis time, and standardizes aesthetics across enclosures, which lowers maintenance time and training costs. Its regulatory compliance, quick-install clamp design, and compatibility with existing Sky Niessen hardware deliver faster commissioning and lower retrofit risk for OEMs and panel builders.
