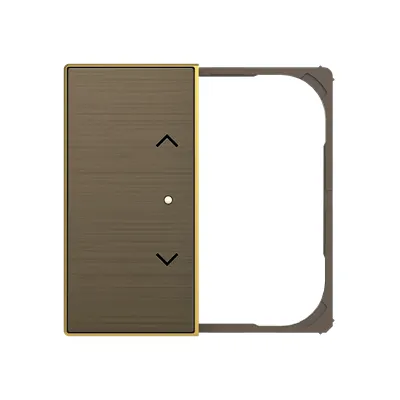

ABB 2CLA852643A1201 Cover Plate for Venetian Blinds - IP20
Part Number: 2CLA852643A1201
Quick Summary
ABB 2CLA852643A1201 is a cover plate for Venetian blind control sensors used with KNX and free@home systems. Engineers often encounter installation gaps and signal inconsistencies when retrofitting multi-sensor panels, which can slow commissioning and affect reliability. This solution offers IP20 protection, CMRT compliance, and WEEE alignment to meet common industry standards in field deployments. Designed in the Sky Niessen range with a taupe metallic finish, it enables clean, two-gang installations using a clamp fastening method. By simplifying mounting, preserving signal integrity, and supporting scalable automation, it helps reduce labor time and downstream maintenance costs. It is a practical choice for integration projects where aesthetics, reliability, and interoperability matter.
Product Information
Extended Description
2CLA852643A1201 ABB: Color: Antique Gold.
Cover plate for free@home sensors and sensor/actuators with 2-gang sensors code: SU-F-2.0.1, SSA-F-2.1.1, SSA-F-2.2.1, SDA-F-2.1.1, SBA-F-2.1.1, SU-F-2.0.1-WL, SSA-F-2.1.1-WL, SSA-F-2.2.1-WL, SDA-F-2.1.1-WL, SBA-F-2.1.1-WL.
Cover plate for KNX 2-gang sensors code: 6108/07-500.
With Blind symbol.
Suitable for both gangs.
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Venetian blind
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Metallic | Glossy
Material
Metal | Stainless steel
Legend
Symbol "arrows"
Color
Taupe
Product Net Width
73 mm
Product Net Height
33 mm
Product Net Depth / Length
73 mm
Product Net Weight
25 g
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Marketing Video
Video Sky Niessen Oro | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Clamp fastening supports tool-free mounting, minimizing cross-threaded screws and backbox damage. This reduces commissioning time, decreases field retries, and lowers service costs. It is ideal for two-gang sensor modules in KNX and free@home installations where a secure, repeatable fit speeds up handovers to building operators. IP20 protection combined with an operating range of -5 to +35 °C protects sensitive electronics from dust ingress and climate stress. The result is longer product life and fewer premature replacements. Note that IP20 is suitable for indoor, dry environments, making it ideal for Venetian blind control panels in offices and homes where indoor conditions vary. Metallic stainless steel finish resists corrosion and smudges while maintaining a premium look across years of service. It supports vandal-resilient environments in commercial spaces without compromising sleek aesthetics. The taupe color coordinates with Sky Niessen lines, ensuring harmonious wall plate integration. Designed within the Sky Niessen range with compatibility for two-gang sensors, this cover plate reduces sourcing risk by supporting KNX and free@home ecosystems. It streamlines procurement, installation, and future upgrades for retrofit projects and new builds, accelerating timelines for Venetian blind automation while preserving wiring layouts. Compact 73 mm width and 33 mm height with a 25 g weight minimize mounting footprint and cabling complexity in tight backboxes. The lightweight profile eases installer handling, reduces wear on mounting frames, and helps preserve enclosure integrity during frequent panel swaps. Symbol arrows legend provides immediate operator understanding for Venetian blind control, reducing commissioning errors and training time. In busy commercial environments and at-home setups, this clarity translates to faster user adoption and fewer misinterpretations. CMRT conflicts minerals reporting, WEEE categorization, and ETIM 9 plus UNSPSC classifications simplify procurement data management, sustainability reporting, and regulatory audits. Aligning the product with these standards supports traceability, supplier compliance, and responsible automation deployments across multi-site installations.
Get a Quick Quote for a ABB 2CLA852643A1201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852643A1201?
Enquire Now
FAQs
The cover plate supports two-gang sensor configurations for both KNX and free@home ecosystems. It is compatible with KNX 2-gang sensors (code 6108/07-500) as well as free@home sensor/actuator assemblies including SU-F-2.0.1, SSA-F-2.1.1, SSA-F-2.2.1, SDA-F-2.1.1, SBA-F-2.1.1 and their WL variants, making it suitable for Venetian blind control applications.
Installation uses clamp fastening for tool-free mounting. Align the two-gang sensor modules with the cover plate, press to secure, and confirm a flush fit. This minimizes backbox wear, reduces installation time, and avoids screw-related issues during commissioning.
Yes. The plate is designed to work with two-gang KNX sensor modules and two-gang free@home sensor/actuator assemblies, providing broad interoperability and streamlined procurement for projects that combine KNX and free@home ecosystems for Venetian blind automation.
Key standards include IP20 protection, CMRT (Conflict Minerals Reporting Template), and WEEE alignment. It is cataloged under ETIM 9 (EC000011) and UNSPSC 39121704, aiding procurement systems and regulatory compliance for corporate sustainability programs.
The cover plate reduces commissioning time with tool-free mounting, enhances reliability with IP20 indoor protection, and supports two-gang KNX/free@home integration. Its durable material and design improve aesthetics, while regulatory alignment simplifies procurement, reporting, and lifecycle maintenance, delivering faster ROI in retrofit and new-build projects.
