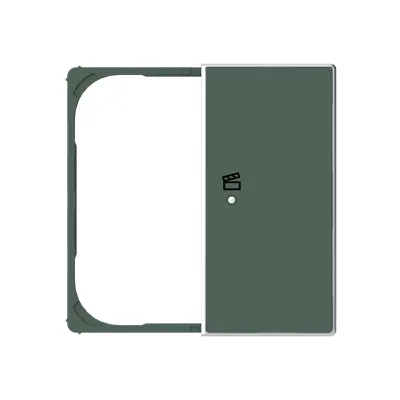

ABB 2CLA852649A1901 Cover F@h Scene symbol for Switch/push button - Sky Niessen IP20
Part Number: 2CLA852649A1901
Quick Summary
ABB 2CLA852649A1901 is a cover for Sky Niessen scene symbols used with switch and push-button assemblies. This part addresses panel aesthetics and wear concerns that come with retrofits. It aligns with RoHS, WEEE, and SCIP certifications to support compliant manufacturing and End-Of-Life processes, while IP20 protection helps safeguard exposed components. The design also complements Sky Niessen’s aesthetic and provides dependable, code-compliant installation with clamp fastening for straightforward procurement and lifecycle reliability.
Product Information
Extended Description
2CLA852649A1901 ABB: Color: Comodoro Cover sensor F@H Sky 2C symbol scene
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Sky New Colours A
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Switch/push button
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Scene symbol
Color
Green
Product Net Width
0.073 m
Product Net Height
0.033 m
Product Net Depth / Length
0.073 m
RoHS Information
2CLA852649A1901_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d6cbdbb1-863b-46b0-be7a-fd4bcc338d53 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Zenit short video | Sky Niessen new finishings short | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Feature: Clamp fastening simplifies installation and replacement while preserving panel integrity. Business Impact: Reduces mounting time and minimizes the risk of loose fittings, lowering labor costs and downtime. Application: Suitable for Sky Niessen switch/push button articles in control panels across industrial environments. Feature: Green decor matt plastic surface delivers a durable, aesthetically consistent finish. Business Impact: Improves operator visibility and reduces panel maintenance frequency, supporting compliance with visual design standards. Application: Ideal for modern control rooms and equipment cabinets with Sky Niessen components. Feature: IP20 protection class and RoHS compliant materials ensure safe, compliant operation. Business Impact: Enhances reliability in non-wet environments and supports regulatory adherence, reducing risk of non-conformant parts. Application: Suitable for indoor installations in electrical cabinets and control stations. Feature: Clear documentation references (Sky Niessen catalogue, 81XX wiring diagrams) streamline installation and future servicing. Business Impact: Cuts commissioning time and simplifies technician training. Application: Helpful for new builds and retrofits in automation projects. Feature: Material and color consistency (Plastic | Thermoplastic, Green) aligns with Sky Niessen design language. Business Impact: Maintains brand uniformity and reduces rework during upgrades. Application: Automotive and factory floor control panels where color-coded scene symbols are required.
Get a Quick Quote for a ABB 2CLA852649A1901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852649A1901?
Enquire Now
FAQs
The installation uses a clamp fastening system designed for Sky Niessen switch/push-button assemblies. Align the cover with the mounting face, press to engage the clamps, and ensure a secure fit before wiring diagrams are referenced from the 81XX manual. The result is a stable, panel-friendly finish that resists vibration in typical automation environments.
Key specs include color Green, material Plastic | Thermoplastic, Product Net Width 0.073 m, Product Net Height 0.033 m, Product Net Depth 0.073 m, and IP20 protection. It is RoHS compliant with WEEE considerations and is intended for Sky Niessen switch/push-button applications, ensuring compatibility with domestic and industrial control devices.
Yes. The 2CLA852649A1901 cover is designed specifically for Sky Niessen scene symbol configurations on switch/push-button devices and uses clamp fastening for straightforward, tool-free installation. It maintains the design language and ensures consistent operation within control panels and machine interfaces.
The part is RoHS compliant under EU Directive 2011/65/EU and amendment 2015/863, with WEEE category considerations and SCIP registration. It’s aligned with ETIM 9 classification (EC000011) for control elements, which supports procurement and regulatory reporting for industrial equipment.
Using the ABB 2CLA852649A1901 cover reduces maintenance downtime by simplifying replacement and inspection of switch/push-button assemblies. Its RoHS/WEEE compliance and durable thermoplastic construction lower replacement frequency, improve panel aesthetics, and support longer service life, contributing to lower total cost of ownership in automation and control systems.
