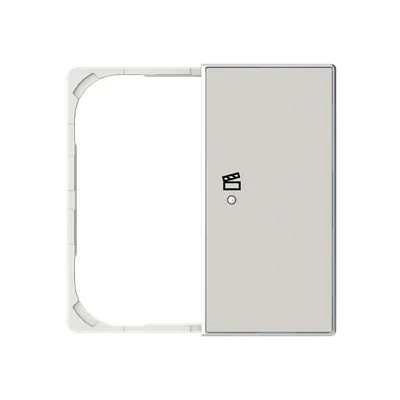

ABB 2CLA852649A6201 Cover F@h Scene symbol - IP20
Part Number: 2CLA852649A6201
Quick Summary
ABB 2CLA852649A6201 is a cover for F@h Scene symbols used with switch/push buttons in control panels. This compact accessory addresses labeling wear and visibility challenges in crowded environments, enabling consistent signaling as panels evolve. It supports quick retrofits with clamp fastening and maintains a cohesive look across Sky Niessen devices. Designed for operation in -5 to +35 °C and IP20 protection, the solution also aligns with RoHS and WEEE requirements, helping you meet regulatory expectations. By matching the Dune color and the Decor Matt finish, it reduces operator training time and simplifies maintenance, while supporting scalable paneling across industrial automation and building controls.
Product Information
Extended Description
2CLA852649A6201 ABB: Color: Duna Cover sensor F@H Sky 2C symbol scene
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Sky New Colours A
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Switch/push button
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Scene symbol
Color
Dune
Product Net Width
0.073 m
Product Net Height
0.033 m
Product Net Depth / Length
0.073 m
RoHS Information
2CLA852649A6201_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
95bfdc01-8444-4181-b12e-7cda31a11db6 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Zenit short video | Sky Niessen new finishings short | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Feature: Clamp fastening enables quick, tool-free installation and fast retrofits. Business Impact: Reduces downtime and labor costs during upgrades, improving project timelines. Application: Ideal for replacing worn covers on Sky Niessen switch/push button assemblies in production lines and control rooms. Feature: IP20 protection provides basic ingress protection for indoor, non-washdown environments. Business Impact: Limits dust intrusion and labeling damage, extending life of the scene symbols in demanding spaces. Application: Suitable for indoor industrial panels and building automation interfaces. Feature: RoHS compliance and WEEE stewardship ensure regulatory alignment across EU manufacturing sites. Business Impact: Lowers compliance risk and supports responsible end-of-life handling, aiding audits and supplier declarations. Application: Required for European supply chains and multinational deployments. Feature: Dune color with Decor | Matt finish enhances readability and operator recognition. Business Impact: Improves human-machine interface (HMI) readability, reducing misinterpretation and training time. Application: Works across Sky Niessen panels to maintain a consistent aesthetic. Feature: Material and footprint (Plastic | Thermoplastic; 0.073 m W x 0.033 m H x 0.073 m D) ensure a compact, durable add-on. Business Impact: Combines durability with minimal footprint for dense control cabinets. Application: Fits standard 81XX wiring diagram installations and existing cutouts in control panels. Additional Insight: Compatibility with Sky Niessen systems helps engineers standardize components across projects, lowering procurement complexity and enabling easier lifecycle management.
Get a Quick Quote for a ABB 2CLA852649A6201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852649A6201?
Enquire Now
FAQs
The cover uses clamp fastening for fast, tool-free installation. Start by disconnecting power, align the F@h scene symbol with the Sky Niessen switch/push button, then clamp the cover onto the existing assembly as described in the Manual - Wiring diagrams switches and push-buttons - 81XX. This reduces downtime and preserves labeling integrity.
Key specs include color Dune with Decor | Matt finish, material Plastic | Thermoplastic, dimensions 0.073 m W x 0.033 m H x 0.073 m D, protection IP20, and clamp fastening. It is designed for ambient operation from -5 to +35 °C and storage from -5 to +50 °C, with RoHS compliance and WEEE categorization.
Yes. The 2CLA852649A6201 cover is designed for Sky Niessen switch/push-button devices, offering a durable, color-consistent solution (Dune) with a matte finish that improves readability and maintains a clean panel aesthetic in indoor environments.
The cover complies with RoHS (EU Directive 2011/65/EU and Amendment 2015/863), WEEE (Category 5), and SCIP listing. It aligns with ETIM 9 EC000011 and UNSPSC 39121704 for standardized classification, supporting compliant procurement in EU markets.
This cover extends label life and protects signaling indicators, reducing replacement frequency. Its clamp design minimizes downtime during retrofits, while RoHS/WEEE compliance simplifies audits. The Dune color and Sky Niessen compatibility support consistent interfaces across projects, lowering training costs and improving first-time fix rates.
