2CLA866020A1501
Part Number: 2CLA866020A1501
Product Information
Extended Description

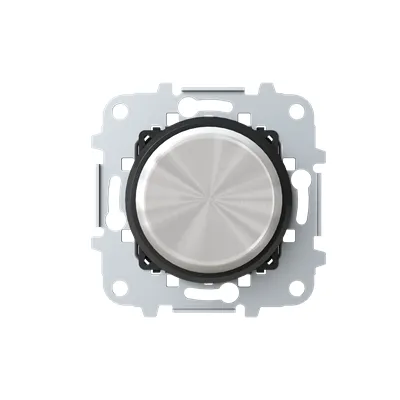

2CLA866020A1501 ABB: Rated voltage: 230 Vac ± 10%
Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA)
Power (min./max load):
- LEDi: 2 / 100 W/VA (max. 10 lamps)
- Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps)
- LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps)
- Incandescent lamps: 10 / 250 W/VA
- Halogen lamps: 10 / 250 W/VA
- LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps)
2 wire connection
Optional: auxiliary on/off with 2-way switch 8102
Indicator LED lamp included
Back-up fuse: Electronic
Overload protection: Electronic
Ambient temperature: 0°C to +35°C
Without fixing claws
Included: metallic rotatory knob
Ring color: Black Glass
Instructions and Manuals
Installation and operating instructions - Rotatory LED dimmer N2260.3, N2260.8, 8660.2, AMD60344
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Dimmer
Number of Batteries
0
Design Range
Skymoon
Surface Finishing
Untreated | Glossy
Material
Glass
Legend
Without imprint
Color
Black
Product Net Width
0.075 m
Product Net Height
0.064 m
Product Net Depth / Length
0.075 m
Product Net Weight
0.042 kg
Replaced Product ID (OLD)
2CL0866025
RoHS Information
2CLA866020A1501_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Skymoon Electronic Switches CE Declaration
Marketing Video
Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39122206
