2CLA868890A1566
Part Number: 2CLA868890A1566
Product Information
Extended Description

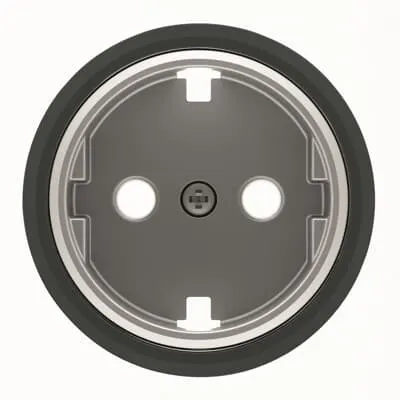

2CLA868890A1566 ABB: Blister 2P+E socket ch. pr.
Ring color: Black
Rated voltage: 250 Vac
Rated current: 16A
Type F: 2P + E
Shuttered for child safety
Screw terminals
Max. torsion 0.8Nm according to ISO 60884-1
Without fixing claws
Instructions and Manuals
Manual - Skymoon rockers, cover plates and frames - 86XX
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Phases
2
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50...60 Hz
Design Range
Skymoon
Surface Finishing
Untreated | Glossy
Material
Glass
Legend
Without imprint
Label Space Provided
No
Color
Black
Product Net Width
0.170 m
Product Net Height
0.115 m
Product Net Depth / Length
0.320 m
Product Net Weight
0.132 kg
RoHS Information
2CLA868890A1566_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000125 - Socket outlet
