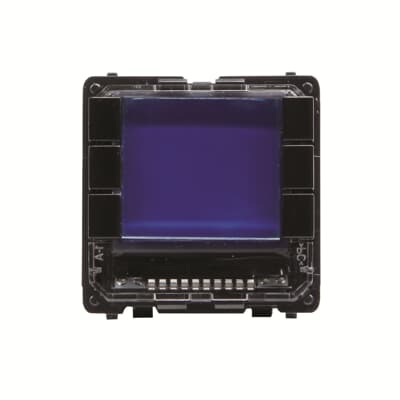

2CLA936800A1001
Part Number: 2CLA936800A1001
Product Information
Extended Description
2CLA936800A1001 ABB: Rated voltage: 230 Vac ± 15%; 50-60 Hz
Max. consumption: 100 mA
Stand-by consuption: 0,2W
Amplifier power: 2+2 W; <1% distorsion (16 Ω)
Speaker impedance: 16 Ω (2+2 W audio)
FM radio digital tuner with RDS
Alarm clock with buzzer, radio types and snooze function
Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output), USB connection and Bluetooth receiver functions
Cover plate code: 8568, N2268, 8468, 8268 & 5568
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Outputs
Analog (0 ... 10 V / 4 ... 20 mA) 0
Number of Program Memory Positions
36
Number of Batteries
0
Rated Voltage (Ur)
230 V
Frequency (f)
50...60 Hz
Design Range
Zenit
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.078 kg
Replaced Product ID (OLD)
2CLA936800A1002
RoHS Information
2CLA936800A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH (CHCMC) declaration of conformity
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Hit By Niessen
ETIM 9
EC002484 - Sound system for domestic switching devices
