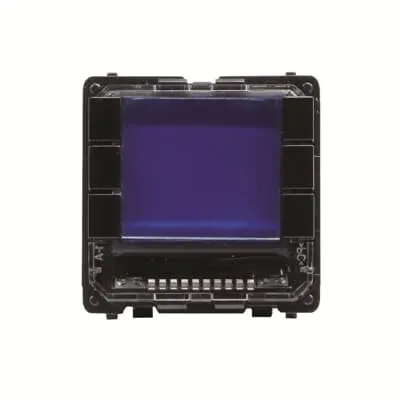

2CLA936820A1001
Part Number: 2CLA936820A1001
Product Information
Extended Description
2CLA936820A1001 ABB: Rated voltage: 127-230 Vac ± 15%; 50-60 Hz
Max. consumption: 15 mA
Stand-by consuption: 0,5W
To control 9368.1 module (1 remote control for each module)
Wireless connection between moles 9368.1 and 9368.2 (ZigBee 2.4GHz IEEE 802.15.4)
Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output) and USB connection functions. In case of using 9368.3 module, the connection between modules 9368.1 and 9368.2 must be wired (3 wires)
Cover plate code: 8568, N2268, 8468, 8268 & 5568
Instructions and Manuals
Instructions for installation and operation - Remote control for 9368.1 module - 9368.2
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Outputs
Analog (0 ... 10 V / 4 ... 20 mA) 0
Number of Program Memory Positions
36
Number of Batteries
0
Rated Voltage (Ur)
230 V
Frequency (f)
50...60 Hz
Design Range
Zenit
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.078 kg
Replaced Product ID (OLD)
2CLA936820A1002
RoHS Information
2CLA936820A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH (CHCMC) declaration of conformity
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Hit By Niessen
ETIM 9
EC002484 - Sound system for domestic switching devices
UNSPSC
39121311
