2CLA936830A1001
Part Number: 2CLA936830A1001
Product Information
Extended Description

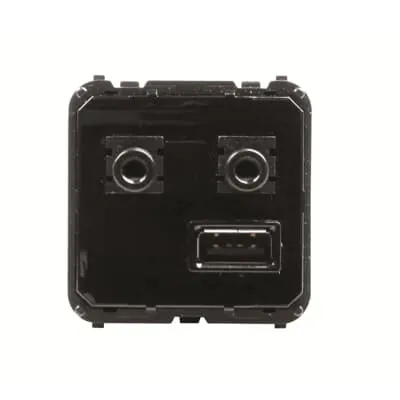

2CLA936830A1001 ABB: Power supply through 9368, 9368.2 or 9368.7 modules
Max. consumption: 200 mA
Stand-by consuption: 0,4W
Bluetooth receiver: Bluetooth® v2.1 2.4GHz IEEE 802.15.1
USB connector: for MP3 and WAV files. Max. consuption of the connected device: 100 mA @5Vdc
Input: 1x mini-jack stereo 3,5mm
Output: 1x mini-jack stereo 3,5mm
Cover plate code: 8568.3, N2268.3, 8468.3, 8268.3 & 5568.3
Instructions and Manuals
Instructions for installation and operation - I/O, US and Bluetooth® module 9368.3
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Outputs
Analog (0 ... 10 V / 4 ... 20 mA) 0
Number of Batteries
0
Rated Voltage (Ur)
9 V
Design Range
Zenit
Color
No color
Product Net Width
0.073 m
Product Net Height
0.052 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.078 kg
Replaced Product ID (OLD)
2CLA936830A1002 | 2CLA936830A1003
RoHS Information
2CLA936830A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH (CHCMC) declaration of conformity
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Hit By Niessen
ETIM 9
EC002484 - Sound system for domestic switching devices
UNSPSC
39121311
