2CLA969730W1001
Part Number: 2CLA969730W1001
Product Information
Extended Description

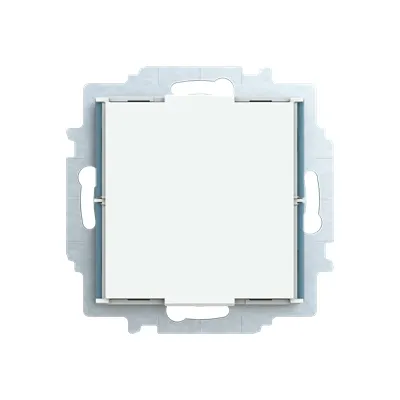

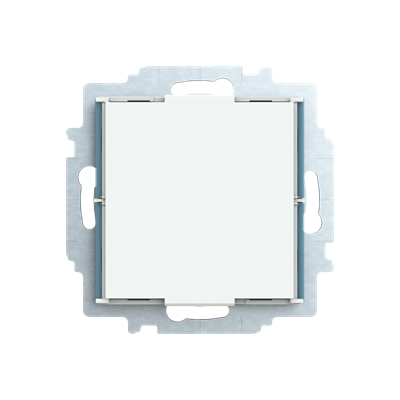

2CLA969730W1001 ABB: free@home bus coupler unit for keypad 1- up to 4-fold devices: - KK/U4.70.xx. Bus connection via enclosed terminal block.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Connections
Number of connections sensor/actuator: 1
Number of LEDs
8
Number of Buttons
4
Number of Actuation Points
4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Number of Batteries
0
Rated Voltage (Ur)
24 V
Rated Current (In)
0.02 A
Design Range
Alba
Material
Plastic | Thermoplastic
Color
white
Width in Number of Modular Spacings
0
Built-In Depth (t2)
32 mm
RoHS Information
RoHS - Product Declaration (.PDF) [EN] BAU-F-0.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] BAU-F-0.1
ETIM 9
EC000634 - Bus coupler for bus system
