2CPX010448R9999
Part Number: 2CPX010448R9999
Product Information
Extended Description

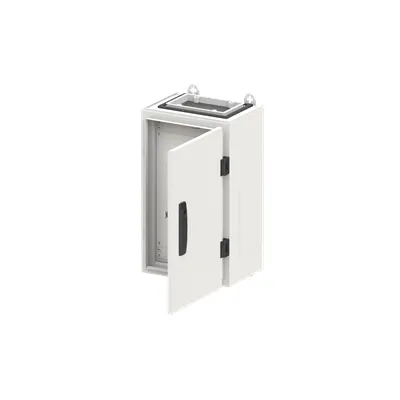

2CPX010448R9999 ABB: Feed-in enclosure, series TwinLine, door, Expansion option: bottom, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, rear wall out of sheet steel, dimensions in mm (H x W x D): 500 x 300 x 225, Grid unit 3 GU, Overall height 00, panel width 1, Space units 36, cable fastening rail integrated
Number of Poles
0P
Enclosure Type
Feed-in enclosure
Enclosure Type of Height
00
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Material
sheet steel
DIN Place Units
36
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b04936e7-a745-4940-af01-2fec4a5e3570 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP55
Protection Class
Isolated (Class II)
Product Net Width
300 mm
Product Net Height
500 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
10.89 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
11.342 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction TZ622 | Mounting instruction TG/TL/TW | Mounting instruction TZ101-105_107_110-112
ETIM 8
EC000268 - Cable entry cabinet
ETIM 9
EC000268 - Cable entry cabinet
eClass
V11.0 : 27142422
Object Classification Code
U
