2CPX010503R9999
Part Number: 2CPX010503R9999
Product Information
Extended Description

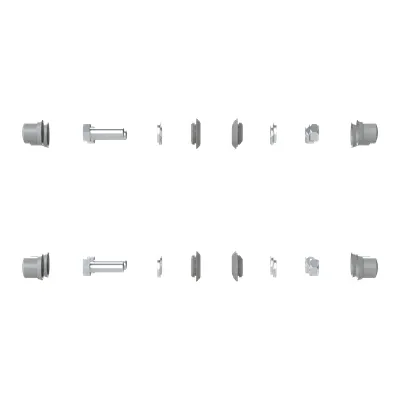

2CPX010503R9999 ABB: Simple stacking of cabinets next to each other or above one another, with IP55 connection set for cabinet stacking, suitable for TwinLine wall cabinets; 2 x TZ608 necessary for standing cabinets; 1 set includes screws and accessories.
Model Number
Components for lace up technique
Accessory Type
coupler set
Enclosure Type
Cabinet connection
Material
Sheet steel / Plastic
Accessories Available
No
Color
grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
150 mm
Product Net Height
25 mm
Product Net Depth / Length
240 mm
Product Net Weight
0.079 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.082 kg
E-Number (Norway)
2437735
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZ608
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002622 - Components for arrangement / baying system (enclosure/cabinet)
ETIM 9
EC002622 - Components for arrangement/baying system (enclosure/cabinet)
eClass
V11.0 : 27182813
Object Classification Code
U
