2CPX010504R9999
Part Number: 2CPX010504R9999
Product Information
Extended Description

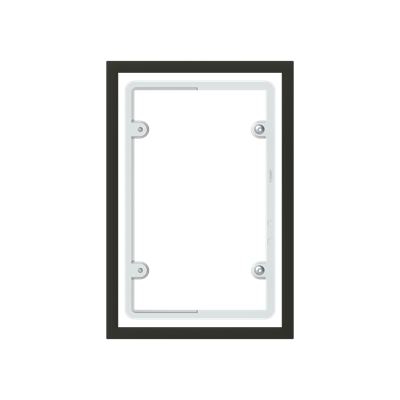

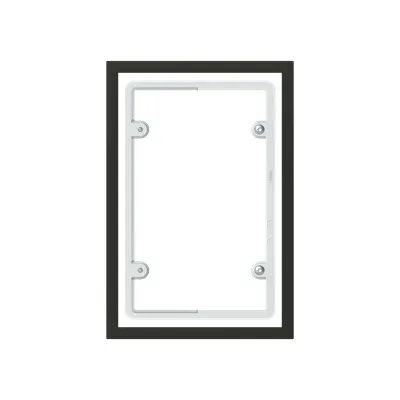

2CPX010504R9999 ABB: IP55 protection frame for insulated cabinet stacking, to ensure insulation when installing cabinets next to each other, suitable for TwinLine-G (SZ) meter cabinets, and TwinLine wall and standing cabinets.
Model Number
Coupling piece, side
Enclosure Type
Cabinet connection
Material
Plastic
Accessories Available
No
Color
grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
150 mm
Product Net Height
20 mm
Product Net Depth / Length
240 mm
Product Net Weight
0.161 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.167 kg
E-Number (Norway)
2437649
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZ609
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002622 - Components for arrangement / baying system (enclosure/cabinet)
ETIM 9
EC002622 - Components for arrangement/baying system (enclosure/cabinet)
eClass
V11.0 : 27182813
Object Classification Code
U
