2CPX010563R9999
Part Number: 2CPX010563R9999
Product Information
Extended Description

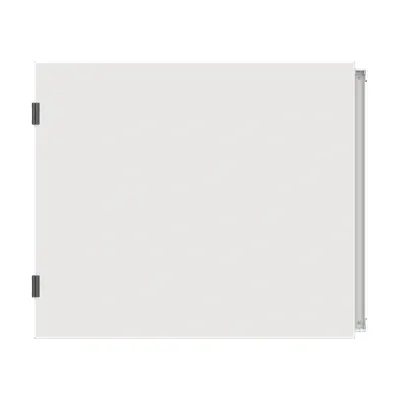

2CPX010563R9999 ABB: Steel sheet left door, 3FB, 4RE, powder-coated, color: RAL 7035, door with rod lock and 3 mm double-bit standard lock, suitable for TwinLine-TW/L/G504 wall cabinets.
Model Number
Protective door
Enclosure Type
Door
Enclosure Type of Height
0
Door Type
Double
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
Yes
DIN Place Units
144
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f57f34b9-0571-44e2-8fd1-21109a2cf1ee Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP55
Product Net Width
775.5 mm
Product Net Height
643 mm
Product Net Depth / Length
27 mm
Section Width
3
Product Net Weight
8.868 kg
Dimension Diagram
Technical Drawing - TwinLine Doors
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.509 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZB TZT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
