2CPX010671R9999
Part Number: 2CPX010671R9999
Product Information
Extended Description

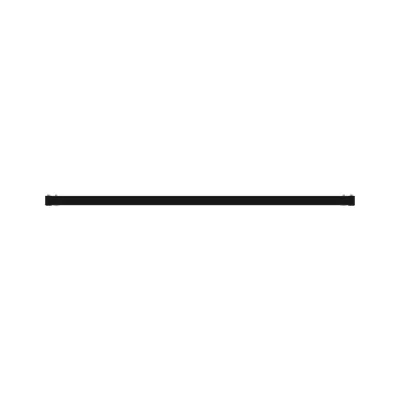

2CPX010671R9999 ABB: Plinth, series TwinLine, suitable for series: TwinLine, partly assembled, for the internal use, Powder-coated, in RAL 9005, dimensions in mm (H x W x D): 50 x 1550 x 328.5, panel width 6
Maximum Load Capacity
466.3 kg
Model Number
Base complete
Enclosure Type
Plinth
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
Yes
RAL Number
RAL 9005 - Jet Black
Color
Black
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1550 mm
Product Net Height
50 mm
Product Net Depth / Length
328.5 mm
Section Width
6
Product Net Weight
6.874 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.149 kg
E-Number (Norway)
2407996
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZG/TZL/TZW
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.0 : 27182003
Object Classification Code
U
