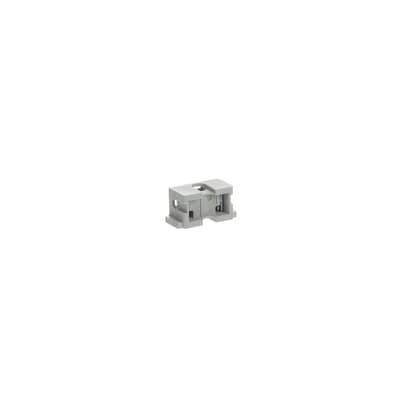

2CPX010792R9999
Part Number: 2CPX010792R9999
Product Information
Extended Description
2CPX010792R9999 ABB: EDF adaptors, installed in the cabinet, for mounting frame brackets, for installation with the EDF mounting frame in TwinLine-G (SZ) meter cabinets, a (4-piece) set is included in the scope of delivery; for TwinLine wall and standing cabinets in addition to the meter and distributor fields, combination kits or CombiLine-M modules installed at the factory, additional EDF adaptors may be necessary, depending on the design.
Model Number
Adapter kit
Accessory Type
Adapter kit
Enclosure Type
Enclosure accessories
Material
Plastic
Accessories Available
No
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
80 mm
Product Net Height
20 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.015 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.016 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
