2CPX010863R9999
Part Number: 2CPX010863R9999
Product Information
Extended Description

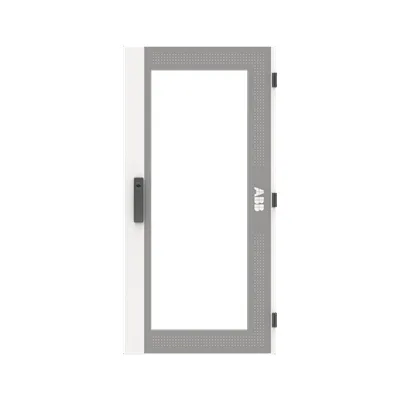

2CPX010863R9999 ABB: Door with viewing window, field width 2, overall height 3 (7 RE), powder-coated, color: RAL 7035, door with rod lock and 3 mm double-bit standard lock, suitable for TwinLine-TW/L/G207 wall cabinets.
Model Number
Protective door
Enclosure Type
Transparant door
Enclosure Type of Height
3
Door Type
Single
Surface Finishing
Other
Accessories Available
Yes
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4c5dc96d-82fd-439b-8e35-359dac5ebf22 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP55
Product Net Width
539 mm
Product Net Height
1093 mm
Product Net Depth / Length
27 mm
Section Width
2
Product Net Weight
9.997 kg
Dimension Diagram
Technical Drawing - TwinLine Doors with viewing window
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.401 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZB TZT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
