2CPX010867R9999
Part Number: 2CPX010867R9999
Product Information
Extended Description

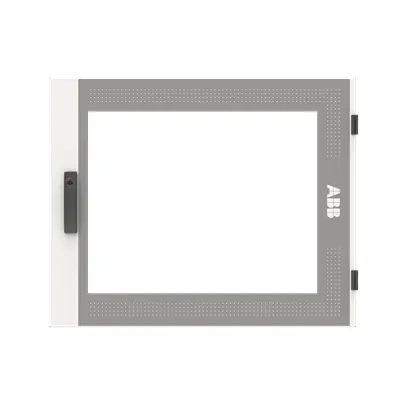

2CPX010867R9999 ABB: Door with viewing window, field width 3, overall height 0 (4 RE), powder-coated, color: RAL 7035, door with rod lock and 3 mm double-bit standard lock, suitable for TwinLine-TW/L/G304 wall cabinets.
Model Number
Protective door
Enclosure Type
Transparant door
Enclosure Type of Height
0
Door Type
Single
Surface Finishing
Other
Accessories Available
Yes
DIN Place Units
144
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2717f0a7-ba87-4665-830b-39c985339958 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP55
Product Net Width
789 mm
Product Net Height
643 mm
Product Net Depth / Length
27 mm
Section Width
3
Product Net Weight
8.671 kg
Dimension Diagram
Technical Drawing - TwinLine Doors with viewing window
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.022 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZB TZT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
