2CPX010958R9999
Part Number: 2CPX010958R9999
Product Information
Extended Description

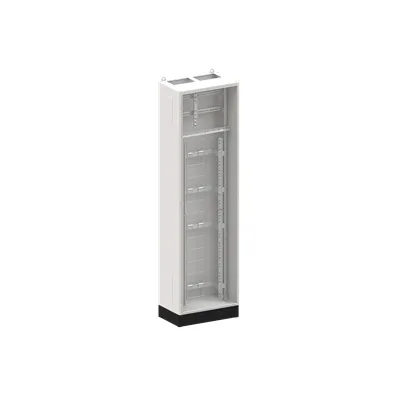

2CPX010958R9999 ABB: Floor-standing cabinet, series TwinLine, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, applicable standards: EN 61439-1, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, door hinge right or left, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 1300 x 225, Grid unit 12 GU, Overall height 8, panel width 5, Space units 720, pre-assembled for installation of modules and CombiLine Modules
Power Loss
Δt = 20K 230.8 W | Δt = 25K 304.6 W | Δt = 30K 382.2 W
Number of Flange Openings
5
Number of Conduit Inlets
260
Number of Rows
12
Configuration Type
pre-assembled for installation of modules and CombiLine Modules
Cover Plate Type
None
Enclosure Type
Floor-standing cabinet
Enclosure Type of Height
8
Mounting Type
Floor installation
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
720
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a9384434-706f-4938-bb0f-956739599fbf Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP44
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
60
Product Net Width
1300 mm
Product Net Height
1850 mm
Product Net Depth / Length
225 mm
Section Width
5
Product Net Weight
80.215 kg
Built-In Depth (t2)
170 mm
Thickness
Cabinet Plate 1 mm | Door Plate 1 mm
Dimension Diagram
Technical Drawing - TwinLine H
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
83.424 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruktion TwinLine N 44 TH..
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
Building Information Modeling – BIM
ABB BIM Twinline N44
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
