2CPX010972R9999
Part Number: 2CPX010972R9999
Product Information
Extended Description

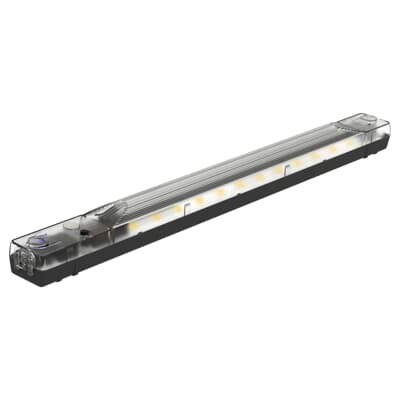

2CPX010972R9999 ABB: The LED cabinet lamp is universally applicable through the large input voltage range. With the magnetic fixing it can be assembled toolless in front of the touch guard of TwinLine N cabinets. The lamp has push in connectors and is delivered with a preassembled wire. The motion detector and multifunction button provide a simple handling. Integrated optics ensure an optimal lighting of the cabinet.
Rated Voltage (Ur)
24...240 V
Rated Operational Voltage
Maximum 24 V
Input Voltage Type
AC/DC
Power Watt
6 W
Enclosure Type
Enclosure accessories
Lamp Type
LED exchangeable
Mounting Type
Magnetic
Accessories Available
No
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
3. Lamps
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Protection Class
Isolated (Class II)
Product Net Width
30 mm
Product Net Height
28 mm
Product Net Depth / Length
350 mm
Product Net Weight
0.2 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.208 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TZ650
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000321 - Luminaire (enclosure/cabinet)
ETIM 9
EC000321 - Luminaire (enclosure/cabinet)
eClass
V11.0 : 27182808
Object Classification Code
U
