2CPX023991R9999
Part Number: 2CPX023991R9999
Product Information
Extended Description

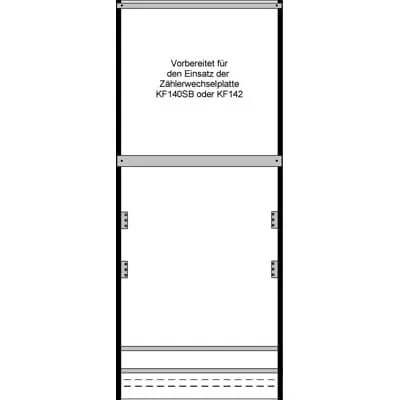

2CPX023991R9999 ABB: Mounting unit for measurement/transformer systems VBEW
Model Number
Mounting rail
Number of Meter Cabinets
1
Number of Panel Heights
12
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Mounting chassis
Enclosure Type of Height
8
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5392607e-b4b8-48e3-90c0-6805e317e75f Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
1800 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
32.737 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
34.046 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction 2/8MWR1, 3/8MWR3
ETIM 8
EC002518 - Profile (enclosure/cabinet)
ETIM 9
EC002518 - Profile (enclosure/cabinet)
eClass
V11.0 : 27180907
Object Classification Code
U
