2CPX030004R9999
Part Number: 2CPX030004R9999
Product Information
Extended Description

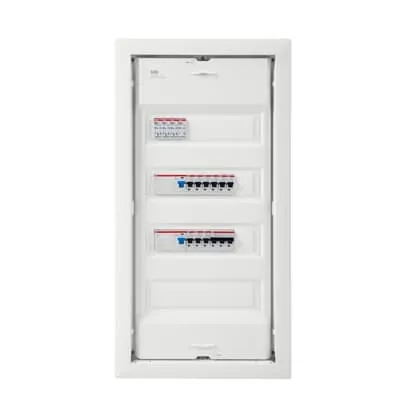

2CPX030004R9999 ABB: Prewired Consumer Unit, series UK600, Expansion option: Lateral and bottom, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, Powder-coated, in RAL 9016, enclosure out of thermoplast, with trim frame and metal door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 747 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 747 x 384 x 9, Space units 48, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, device support removable
Tripping Characteristic
B
Rated Operational Voltage
Maximum 400 V
Power Loss
Δt = 30K 62 W
Number of Poles Main Switch
0
Number of Outputs
10
Number of Phases
4
Number of Earth Leakage Circuit Breakers (ELCBs)
0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 9 | Three-Phase 1
Number of Phases in Cooking Group
0
Number of Rows
4
Overvoltage Category
II
Closure Type
Push Button
Cover Plate Type
Door
Enclosure Type
Prewired Consumer Unit
Mounting Type
Flush mounting
Protection Type
Miniature circuit breaker (MCB)
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
48
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity UKB4DOK10D UKB4DOX10D UKB3BOK16D UKB3BOX16D
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
384 mm
Product Net Height
747 mm
Product Net Depth / Length
97 mm
Product Net Weight
8.642 kg
Built-In Depth (t2)
75 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.988 kg
Declaration of Conformity - CE
EU Declaration of Conformity UKB4DOK10D UKB4DOX10D UKB3BOK16D UKB3BOX16D
Instructions and Manuals
Mounting instruktion UK6..NB / UK6..N. / UK6..P
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
Object Classification Code
U
