2CPX030023R9999
Part Number: 2CPX030023R9999
Product Information
Extended Description

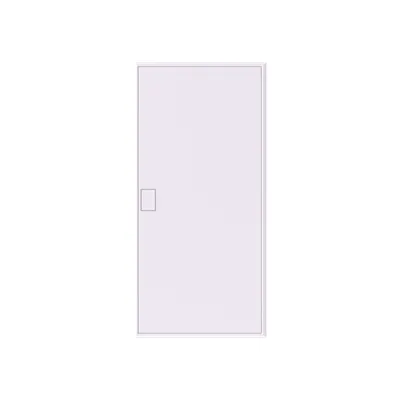

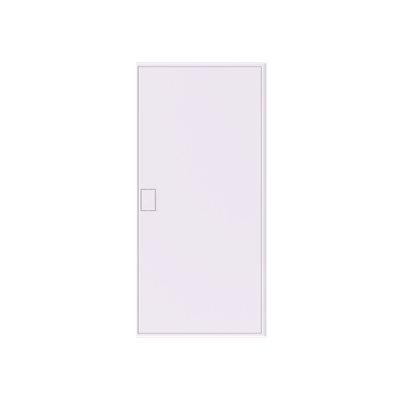

2CPX030023R9999 ABB: Consumer unit, partly assembled, for the internal use, with Door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, metal door , door out of sheet steel, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 703 x 339 x 99, Space units 48, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE screw terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
63 A
Power Loss
Δt = 30K 90 W
Number of Rows
4
Closure Type
Push Button
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Cover
Enclosure Type
Consumer unit
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Untreated
Housing Material
Plastic
Material
Thermoplast
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
48
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit AK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
339 mm
Product Net Height
703 mm
Product Net Depth / Length
99 mm
Built-In Depth (t2)
55 mm
Package Level 1 Units
pack 1 piece
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit AK600
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
Object Classification Code
U
Standards
DIN 43871
