ABB 2CPX030339R9999 Meter panel - IP2XC

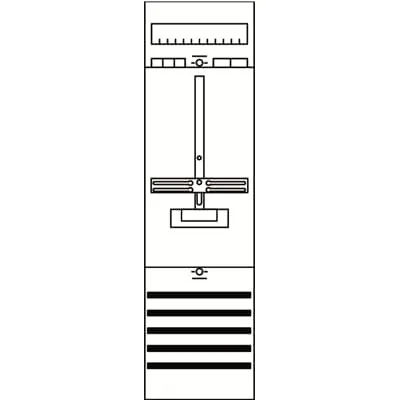

Feature: Integrated meter panel includes a fully assembled meter module and a metering cross, pre-wired to simplify the wiring ladder inside the cabinet and eliminate on-site splice work. Business impact: reduces commissioning time by removing multiple field connections, lowers labor costs, and minimizes human errors during meter wiring, testing, and configuration. Application: ideal for new build installations in manufacturing lines, data centers, process plants, and utility rooms where space is tight and reliability is non-negotiable. The module is designed for direct connection to a TN-S system and supports future expansion with stand-alone meter spaces and busbar integration. Compatibility and installation advantages: the unit aligns with ComfortLine A and ComfortLine AD series, providing a direct connection scheme, 5-pole lower space with a busbar, and a 1 meter cabinet for side-by-side metering. The enclosure features a closed cover for safety, 72 DIN place units, and a panel height that fits standard mounting arrangements, enabling a single panel to host meters or metering modules. The 900 by 250 by 160 mm footprint balances visibility, accessibility, and room for wire management, while the pre-wired meter terminal reduces panel-building steps and field wiring errors. Compliance and risk management: the product carries IP2XC protection and CE declarations, along with RoHS and REACH compliance and dates, providing regulatory certainty for European and international deployments. WEEE classification as large equipment informs disposal and recycling planning. This proactive compliance reduces audit findings, speeds approvals, and supports sustainability programs, helping procurement teams meet supplier responsibility goals. Durability and aesthetics: the enclosure is finished in RAL 7035 light grey with a matching color for the cover and internal components, delivering a uniform appearance in factory switchgear bays and control rooms. The meter boards count of 72 DIN units supports flexible metering layouts, while the busbar arrangement offers low-inductance, robust connections for improved electrical performance under load. The closed cover also enhances safety during maintenance. Operational value: the module-ready approach supports modular upgrades and planned maintenance without major panel remodelling, enabling fast adaptation to new metering requirements. For procurement teams, the standardization reduces SKU proliferation, simplifies stocking, and accelerates project timelines; customers report lower risk of wiring faults, easier fault finding, and a faster path to compliance when using pre-wired meter panels.
