ABB 2CPX030342R9999 Meter Panel - IP2XC, ComfortLine Ready
Part Number: 2CPX030342R9999
Quick Summary
ABB 2CPX030342R9999 Meter Panel is a dedicated meter board for industrial control cabinets. This compact solution helps streamline main switch integration and metering in automation panels. Key certifications include IP2XC protection, CE conformity, and RoHS/REACH compliance. Pairing ComfortLine readiness with a pre-wired metering module delivers faster installation and safer, more maintainable panels. This approach supports efficient electrical room layouts and predictable maintenance, aligning with modern facility and OEM procurement goals.
Product Information
Extended Description

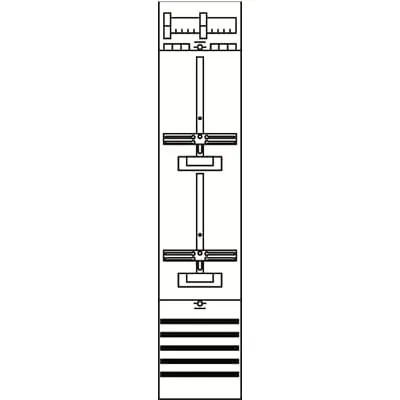

2CPX030342R9999 ABB: Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, degree of protection IP2XC, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 1200 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, with-out, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 2, Grid unit 8 GU, Overall height 4, panel width 1, Space units 96, covers out of Plastic, Quick sealable connection, RAL 7035
Type of Low Voltage Distribution System
TN-S
Rated Current (In)
63 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
2
Number of Rows
0
Number of TSG Panels
0
Design
complete panel meter board
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
4
Plug In Meter Terminal
No
Cover Style
Closed
DIN Place Units
96
Meter Boards
1
Module Function
Meter field
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1200 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
7.028 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.309 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction meter panel
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
TN-S compatibility minimizes earth fault paths and improves protection coordination. This translates into clearer fault isolation and safer operation, reducing downtime during maintenance. The meter panel is designed for direct connection with an earthing system TN-S and a 5-pole lower connection space with a bus bar, making it ideal for centralized control rooms and new builds. The 63 A rated current supports typical main circuits without oversizing, cutting material costs and enabling compact distribution boards for small-to-medium installations. The pre-wired metering module and pre-installed bus bars accelerate on-site wiring, lowering labor time and reducing risk of wiring mistakes during panel assembly. With two meter spaces and 96 DIN units, it provides scalable metering capacity for future expansion while preserving a clean, organized cabinet layout. IP2XC protection and a closed cover enhance operator safety in semi-industrial environments, while the light grey RAL 7035 finish ensures consistent aesthetics. Compliance highlights include RoHS, REACH declarations, and WEEE categorization, supporting responsible end-of-life handling and regulatory conformity. The overall design is compatible with ComfortLine A and ComfortLine AD panels, enabling smoother BOM alignment and streamlined procurement for OEMs and integrators.
