2CPX030892R9999
Part Number: 2CPX030892R9999
Product Information
Extended Description

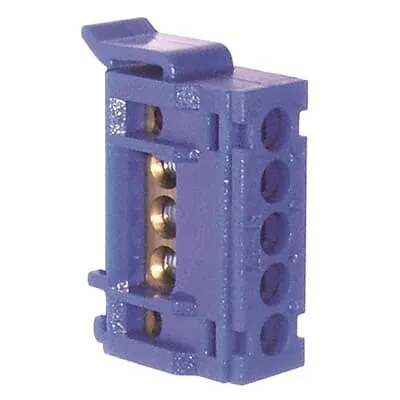

2CPX030892R9999 ABB: N-FI rail, clear color coding: N = blue, number of terminals: 3 x 16 mm² + 2 x 10 mm², screw-on,
Suitable For
AL22|AL31|AL32|AL41|AL42|AL43|AL51|AL52|AL53|AL54|AL61|AL62|AL63|AL64|AL72|AL73|AT22E|AT31|AT32|AT32R2|AT32TE|AT32TR2|AT41|AT41R3|AT41TE|AT41TR3|AT42|AT42/2|AT42M|AT42R3|AT42TE|AT42TR3|AT43|AT43R3|AT43TR3|AT51|AT51R4|AT51TE|AT51TR4|AT52|AT52/2|AT52K|AT52R_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_༁
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
63 A
Number of Poles
1P
Number of Clamp Positions
55
Number of Line Terminals
5
Accessory Type
terminals
Connection Type
Screw
Enclosure Type
Enclosure accessories
Mounting Type
Direct mounting
Terminal Connection Type
Side
Insulation Material
Thermoplastic
DIN Place Units
0
Meter Boards
0
Color
blue
Rated Cross-Section
1 - Solid-Core 1,5...16 mm² | 2 - Fine-Strand with Cable End Sleeve 1.5...10 mm² | 2 - Fine-Strand with Cable End Sleeve 0,75...10 mm² | 3 - Fine-Strand without Cable End Sleeve 10 mm² | 4 - Multi-Wired 10 mm²
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ČSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
7073baf8-cd8c-4325-a764-4804d0237dad Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Product Net Width
42 mm
Product Net Height
36 mm
Product Net Depth / Length
15 mm
Section Width
1
Product Net Weight
0.02 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.021 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ČSN EN 62208
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
U
