2CPX031098R9999
Part Number: 2CPX031098R9999
Product Information
Extended Description

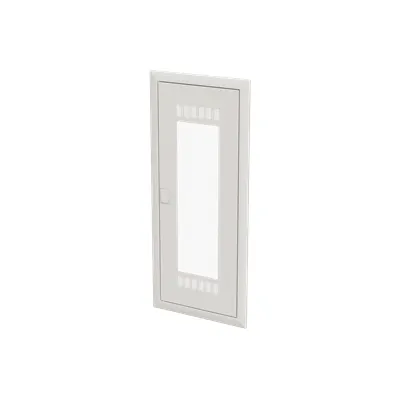

2CPX031098R9999 ABB: Trim frame and “wifi friendly” door with ventilation slots and semi transparent plastic insert, suitable for UK66.. consumer unit, powder-coated sheet steel, color: Alpine white, RAL 9016, the tip-in door closure impresses with its modern design and simple operation, a safety lock is available as an accessory for more security, simple removal of the trim frame and door with a flush-mounted option
Model Number
Protective door
Number of Rows
5
Accessory Type
door with frame
Enclosure Type
Enclosure accessories
Door Type
Single
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
Yes
DIN Place Units
60
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP30
Product Net Width
384 mm
Product Net Height
872 mm
Product Net Depth / Length
33 mm
Section Width
1
Product Net Weight
2.258 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.348 kg
E-Number (Sweden)
2201202
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction BL6..V/W
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
Building Information Modeling – BIM
ABB BIM UK600 BL Frame and door
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
