2CPX031121R9999
Part Number: 2CPX031121R9999
Product Information
Extended Description

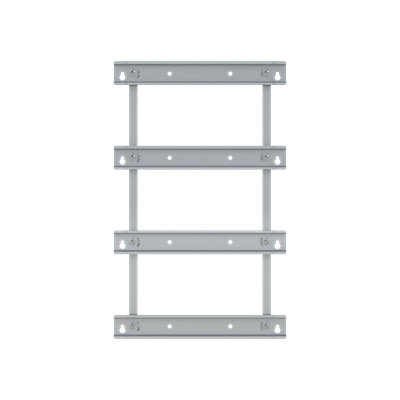

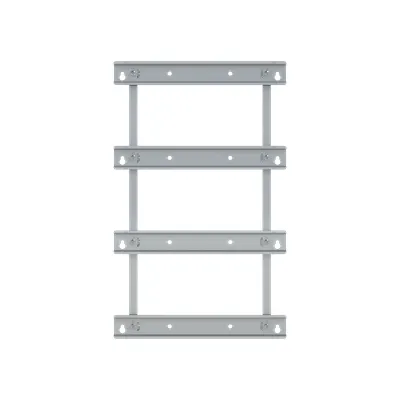

2CPX031121R9999 ABB: Device carrier with removable DIN rails, suitable for UK64..., the solid metal DIN rail frame with key holes insures an easy and timesaving installation .
Model Number
device support
Number of Rows
4
Accessory Type
DIN Rail Frame
Enclosure Type
Enclosure accessories
Material
Steel
Accessories Available
No
DIN Place Units
48
RAL Number
RAL 9016 - Traffic White
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
255 mm
Product Net Height
410 mm
Product Net Depth / Length
16 mm
Section Width
1
Product Net Weight
0.543 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.565 kg
E-Number (Sweden)
2201183
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
