2CPX031152R9999
Part Number: 2CPX031152R9999
Product Information
Extended Description

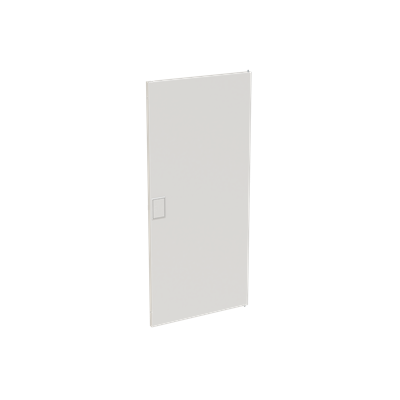

2CPX031152R9999 ABB: Enclosure accessories, door, class of protection II (double insulated), degree of protection IP40, applicable standards: EN 60670-24, Powder-coated, in RAL 9016, metal door , door out of sheet steel, in RAL 9016, door opening angle 125 degree, dimensions in mm (H x W x D): 675 x 311 x 13, panel width 1, Space units 48
Model Number
Protective door
Number of Rows
4
Accessory Type
door
Enclosure Type
Enclosure accessories
Door Type
Single
Surface Finishing
Powder-coated
Material
sheet steel
Accessories Available
Yes
DIN Place Units
48
Color
Traffic white
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Degree of Protection
IP40
Protection Class
Isolated (Class II)
Product Net Width
311 mm
Product Net Height
675 mm
Product Net Depth / Length
13 mm
Section Width
1
Product Net Weight
1.718 kg
Dimension Diagram
AK600 - Technical Drawing
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.787 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Instructions and Manuals
Mounting instruction AZT6
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
