2CPX031452R9999
Part Number: 2CPX031452R9999
Product Information
Extended Description

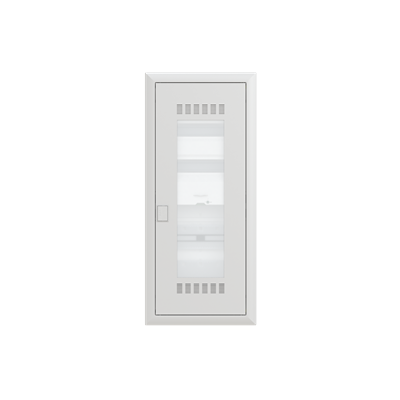

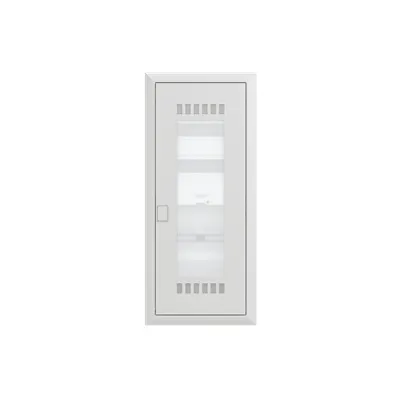

2CPX031452R9999 ABB: Combi Unit, series UK600, Expansion option: Lateral and bottom, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, Powder-coated, in RAL 9016, enclosure out of thermoplast, with frame and ventilated semi-transparent wifi door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 872 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 872 x 384 x 9, Space units 24, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, segregation wall and perforated sheet steel mounting plate, device support removable
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
63 A
Power Loss
Δt = 30K 75 W
Number of Rows
5
Closure Type
Push Button
Configuration Type
assembled with device carrier, segregation wall and perforated sheet steel mounting plate
Cover Plate Type
Door
Enclosure Type
Combi Unit
Mounting Type
Flush-/ hollow wall mounting
Door Type
Single
Surface Finishing
Powder-coated
Door Surface Finishing
Transparent
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
24
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
384 mm
Product Net Height
872 mm
Product Net Depth / Length
97 mm
Product Net Weight
5.16 kg
Built-In Depth (t2)
88 mm
Dimension Diagram
UK600 BL Dimensional Drawing | UK600 - Tecnical Drawing Patch Panel | UK600 - Tecnical drawing Combi Enclosure | Technical Drawing UK600
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.366 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction ZE228 | Mounting instruction UK662CVC/CWC UK663CVC/CWC
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN 43871
