2CPX031762R9999
Part Number: 2CPX031762R9999
Product Information
Extended Description

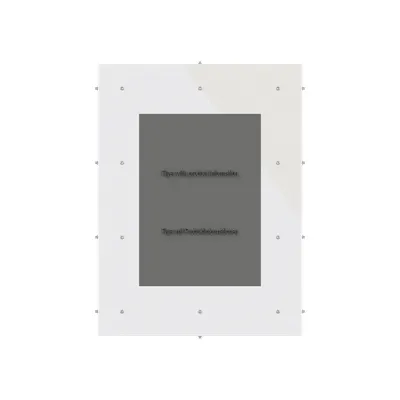

2CPX031762R9999 ABB: Design instert for series UK600, suitable for design frame BL620D, picture frame insert with backplate and cover glass
Rated Operational Voltage
Maximum 400 V
Model Number
Other
Number of Clamp Positions
0
Number of Rows
2
Accessory Type
design insert
Enclosure Type
Enclosure accessories
Mounting Type
Angle profile
Door Type
Without Door
Surface Finishing
Other
Accessories Available
No
DIN Place Units
24
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Width in Number of Modular Spacings
12
Product Net Width
469 mm
Product Net Height
352 mm
Product Net Depth / Length
6 mm
Product Net Weight
2.268 kg
Dimension Diagram
UK600 - Tecnical Drawing BLD
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.359 kg
E-Number (Sweden)
2201285
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction UZD6.. / BL6..D
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
