2CPX031817R9999
Part Number: 2CPX031817R9999
Product Information
Extended Description

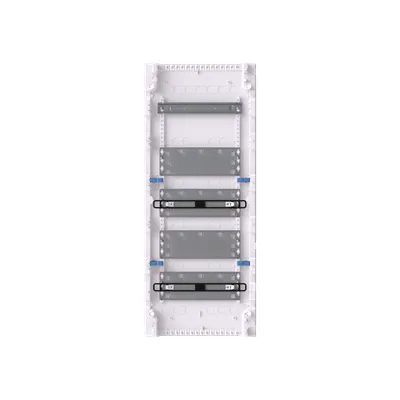

2CPX031817R9999 ABB: Multimedia unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP00, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 828 x 339 x 99, Space units 60, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, without N/PE without terminal, cable fastening rail integrated, With Mulit Media board, device support removable
Rated Operational Voltage
Maximum 400 V
Power Loss
Δt = 30K 149 W
Number of Rows
5
Closure Type
Push Button
Configuration Type
With Mulit Media board
Cover Plate Type
Cover
Enclosure Type
Multimedia unit
Mounting Type
Surface mounting
Door Type
Without Door
Surface Finishing
Untreated
Housing Material
Plastic
Material
Thermoplast
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
60
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit AK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP00
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
339 mm
Product Net Height
828 mm
Product Net Depth / Length
99 mm
Product Net Weight
2.954 kg
Built-In Depth (t2)
58 mm
Dimension Diagram
UK600 - Tecnical Drawing Patch Panel | AK600 - Technical Drawing
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.072 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit AK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Instructions and Manuals
Mounting instruction AK6-M
Building Information Modeling – BIM
AK600 consumer Units / Media Units (DE)
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN 43871
