ABB 2CPX031989R9999 CT meter panel - IP2XC protection
Part Number: 2CPX031989R9999
Quick Summary
ABB 2CPX031989R9999 CT meter panel is a distribution unit for half-indirect metering. Engineers often struggle with integration, space planning, and regulatory compliance in meter-panel installs. Key certifications include EN 61439-1, CE conformity, and IP2XC protection to ensure safety and reliability. Built for robust enclosures and electrical infrastructure, it combines a 5-pole layout, 415 V operation, and copper busbars to simplify sizing and upgradeability. By choosing this panel, procurement gains a proven, ready-to-install solution that reduces field assembly time and strengthens compliance across industrial applications. It also supports optional voltage-path fuses and compatible connection sets, enabling scalable electrical infrastructure with predictable maintenance costs and improved uptime.
Product Information
Extended Description
2CPX031989R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals connection set VS427 to ordered seperately for voltage pathfuse, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
17.699 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
18.407 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

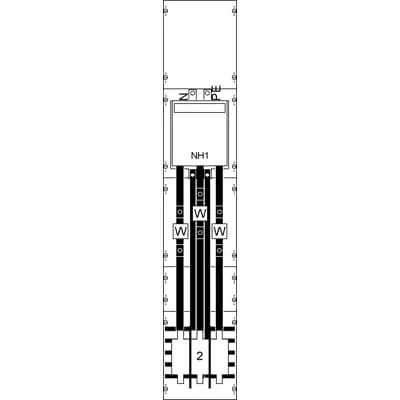

Circuit and distribution diagram KA4050
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature 1: Fully assembled CT meter panel rated for 415 V and 200 A with a 5-pole configuration. Business Impact: Accelerates commissioning, reduces on-site labor, and minimizes field wiring errors. Application: Industrial facilities requiring robust half-indirect metering with swift integration into existing switchgear. Long-tail keywords: CT meter panel assembly, 5-pole meter panel, industrial enclosure with CTs. Feature 2: IP2XC protection and closed cover design. Business Impact: Enhances operator safety and protects sensitive components in potentially dusty or damp environments, lowering risk of downtime. Application: Internal distribution cabinets in manufacturing lines and process plants. Long-tail keywords: IP2XC meter panel protection, safe enclosure design, closed cover meter cabinet. Feature 3: Aluminum-free, robust plastic enclosure finished in RAL 7035. Business Impact: Consistent environmental protection and maintenance-free appearance, reducing repaint cycles and corrosion concerns. Application: Large-scale control rooms and equipment rooms. Long-tail keywords: RAL 7035 enclosure, light grey control cabinet, durable meter panel housing. Feature 4: Cu busbars 12 x 5 mm, 5-pole layout, NH2/400 A fuse base compatibility. Business Impact: Improves current paths, reduces voltage drop, and simplifies future fuse upgrades. Application: Meter panel installations with scalable protection and distribution. Long-tail keywords: Cu busbars, NH2 fuse base, fuse path upgrades. Feature 5: DIN rail space and 108 DIN place units, with TN-S earthing. Business Impact: Ensures modular flexibility and straightforward mounting into standard enclosures, saving space and enabling orderly cabling. Application: New installations and retrofits in industrial facilities. Long-tail keywords: DIN place units 108, TN-S earthing, modular meter panel. Feature 6: RoHS, REACH, and CE declarations with compliance traceability. Business Impact: Reduces regulatory risk and streamlines sourcing with auditable standards. Application: Global manufacturing environments requiring green compliance. Long-tail keywords: RoHS compliant meter panel, REACH declaration, CE conformity.
Get a Quick Quote for a ABB 2CPX031989R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX031989R9999?
Enquire Now
FAQs
This CT meter panel measures 1350 mm high, 250 mm wide, and 160 mm deep, designed for indoor use with TN-S earthing. It supports a 5-pole configuration and Cu busbars (12 x 5 mm). Plan for a right-hand incomer and ensure space for future voltage-path fuse upgrades (up to 150 mm). The enclosure uses RAL 7035 light grey plastic covers and a closed cover style to protect internal components from dust and moisture.
Rated operational voltage is maximum 415 V AC, with a rated current of 200 A and a 5P configuration. It is built to EN 61439-1 requirements, carries IP2XC protection, and accommodates NH2/400 A fuse bases. The system uses copper busbars and supports L1-L3 primary wiring with Cu-busbar 30 x 5 mm for earth and neutral connections.
Yes. It is CE certified with EU Declaration of Conformity for meter panels, EN 61439-1 compliant, and RoHS/REACH compliant. Documentation references include the EU RoHS declaration and REACH information, along with SCIP and WEEE classifications to support regulatory reporting and environmental sustainability goals.
Yes. The design includes a dedicated space for voltage-path fuses and a parting point for post-transformer protection. There is a planning note of 150 mm space for upgrading to voltage-path protection fuses, enabling scalable protection while maintaining a clean wiring arrangement.
The panel supports accessory options such as VS427 busbar connection sets and CT mounting pads (170 x 30 x 5 mm). It is compatible with grid units and other ABB enclosure accessories to facilitate integration with existing switchgear and to streamline extended metering or distribution configurations in large facilities.
