ABB 2CPX031993R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX031993R9999
Quick Summary
ABB 2CPX031993R9999 is a measurement and metering transformer board for indoor meter cabinets. Engineers often grapple with space constraints and complex wiring inside switchgear assemblies. With EN 61439-1/2 compliance, IP2XC protection, and CE marking, it meets rigorous European safety and performance standards. The pre-wired layout, Cu busbars, and 216 DIN-place footprint simplify installation, reduce field hoisting, and improve project predictability. Designed for DSOs and plant facilities, it supports faster commissioning and cost-efficient maintenance. Its durable RAL 7035 enclosure and closed cover further enhance reliability in demanding environments.
Product Information
Extended Description

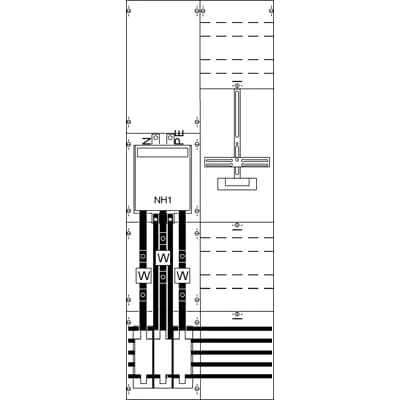

2CPX031993R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Pre-wired according requirements DSO, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
23.553 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.495 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction VS631
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4245
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled module with Metering cross, pre-wired per DSO requirements. Benefit: Accelerates installation, minimizes wiring errors, and shortens project timelines. Application: Indoor meter cabinets and switchgear where space is at a premium. Feature: IP2XC protection and EN 61439-1/2 compliance. Benefit: Enhanced safety and regulatory compliance for harsh environments, reducing risk of faults and outage costs. Application: European distribution and metering panels in commercial and industrial facilities. Feature: Dimensions and footprint – 1350 mm height, 500 mm width, 160 mm depth with 216 DIN units. Benefit: Predictable space planning and easy standardization across multiple projects. Application: Retrofit and new-build meter assemblies with modular expandability. Feature: Cu busbars 12 × 5 mm, 5-pole arrangement, N+PE connections, and fuse bases. Benefit: Reliable high-current connections and straightforward electrical integration, lowering commissioning time. Application: Meter cabinets requiring robust busbar networks and clear fault isolation. Feature: Material and environmental compliance – RoHS, REACH, SCIP, WEEE, and CE labeling. Benefit: Simplified procurement, sustainable design, and compliance reporting. Application: Procurement for regulated industries and circular economy programs. Feature: Pre-wired according to DSO requirements and notes on busbar terminals. Benefit: Faster site installation with fewer customization steps, while clearly defining ordering needs. Application: Utility projects and industrial facilities following DSOs’ standard practices.
Get a Quick Quote for a ABB 2CPX031993R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX031993R9999?
Enquire Now
FAQs
The unit is a fully assembled meter board designed for indoor use and pre-wired to DSOs requirements. Ensure the cabinet supports 216 DIN units, connect N and PE with M8 lugs, and follow the note that busbar terminals are ordered separately. The pre-wired layout reduces field wiring time and minimizes commissioning errors during retrofit installs.
Key specs include rated operational voltage up to 415 V, rated current of 210 A, 5 poles (5P), and IP2XC protection. It is EN 61439-1/2 compliant and designed for indoor meter cabinets with Cu busbars (12 × 5 mm) and a 216 DIN unit footprint to fit standard layouts.
Yes. Its modular 5-pole, 210 A design and DIN unit footprint support both new installations and retrofits. The enclosure’s dimensions (1350 × 500 × 160 mm) and pre-wired configuration streamline integration into existing distribution boards while maintaining compliance with EN 61439-2 standards.
The product carries CE marking and EN 61439-2 compliance, with RoHS and REACH declarations, a SCIP entry, and WEEE classification (4. Large Equipment). It is designed for B2B procurement and supports sustainability reporting and regulatory compliance.
Expect faster commissioning and reduced on-site labor due to pre-wired configuration and standardized DIN footprint. The robust IP protection and EN compliance minimize rework and reliability risks, delivering lower lifecycle costs and improved uptime for metering and distribution operations.
