ABB 2CPX031996R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX031996R9999
Quick Summary
ABB 2CPX031996R9999 is a measurement and metering transformer board designed for internal use in medium-power switchgear and meter rooms. Engineers often struggle with space constraints, pre-wiring accuracy, and aligning with evolving standards in meter panels. It complies with EN 61439-1/2, carries CE conformity, and features IP2XC protection for safe deployment in indoor meter rooms. The unit is pre-wired according to DSO requirements, with Cu busbars and an integrated 5-pole layout, delivering reliable, scalable metering capabilities that reduce commissioning time and total cost of ownership. With RoHS and REACH declarations current, this panel supports sustainable compliance and long service life in demanding industrial environments. Its modular design simplifies upgrades and spare-part replacement, helping maintenance teams minimize downtime.
Product Information
Extended Description

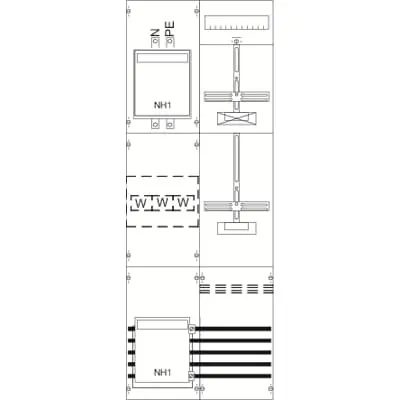

2CPX031996R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range Mounting plate for Single-CT with CT-rail, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
24.595 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
25.579 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction für current transformer | Mounting instruction ZX133
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4242
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Pre-wired per DSO requirements reduces field wiring complexity, speeding up commissioning and cutting on-site fault rates. This translates to meaningful cost savings and faster time-to-value for new metering installations in utilities and large plants. Robust protection and standards compliance with IP2XC and EN 61439-1/2 safeguards personnel and equipment while maintaining regulatory alignment. For indoor meter rooms and control cabinets, that combination minimizes rework and ensures consistent performance across environments. Cu busbar system and 5-pole arrangement provide reliable current distribution with low resistance; this supports high efficiency and reduced voltage drops in 210 A-rated assemblies. The parting points and busbar details simplify phased upgrades and cross-connecting metering circuits. Modular DIN placement (216 positions) and 2-width panel compatibility deliver scalable capacity for growing metering needs. This enables easier retrofit and expansion within existing switchgear, reducing total cost of ownership. RoHS/REACH commitments ensure regulatory compliance and environmental responsibility, helping avoid supply-chain interruptions in regulated industries. WEEE, SCIP registrations for Germany, and CE conformity further reinforce risk management and market access. Overall, you gain predictable performance, reduced downtime, and streamlined service life in critical infrastructure. The combination of pre-wire, copper busbars, and robust enclosure design supports reliable metering across utilities and industrial facilities.
Get a Quick Quote for a ABB 2CPX031996R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX031996R9999?
Enquire Now
FAQs
To install the ABB 2CPX031996R9999 meter panel, verify EN 61439-1/2 compliance and IP2XC protection, mount the unit on a suitable chassis, and follow the pre-wired DSO configuration. Plan for Cu busbars 12 x 5 mm (main circuits) and N+PE connections using M8 terminals. Ensure L1–L3 wiring uses 120 qmm conductors and respect the 216 DIN-place footprint (500 mm wide, 1350 mm high).
Key electrical specs include a maximum operational voltage of 415 V, rated current 210 A, a 5-pole configuration, and IP2XC protection. The panel uses Cu busbars and N+PE connections (M8) with 120 qmm L1–L3 conductors and 20 x 5 mm busbars for N+PE. Dimensions are 1350 x 500 x 160 mm, weighing about 24.6 kg.
Yes. The RoHS status follows EU Directive 2011/65/EU with Amendment 2015/863, dated 2024-09-03, and the REACH declaration confirms the presence of substances above 0.1 mass percentage, dated 2024-09-02. The product also carries SCIP registration for Germany and related environmental declarations, supporting regulatory compliance in regulated industries.
Primarily suited for meter cabinets and internal cross-connection in utility-scale and industrial switchgear, the 2CPX031996R9999 supports metering cross, direct wiring, and pre-wired configurations to streamline commissioning. It is ideal for indoor meter rooms and applications requiring IP2XC protection, EN 61439-2 compliance, and modular 216-DIN unit arrangements for future expansion.
Note that busbar terminals are not included and should be ordered separately. The unit provides a Cu busbar system (12 x 5 mm for 5-pole and 20 x 5 mm N+PE) and a closed cover, but terminal blocks and individual meter transformer accessories are shipped separately to allow customization for specific installations.
