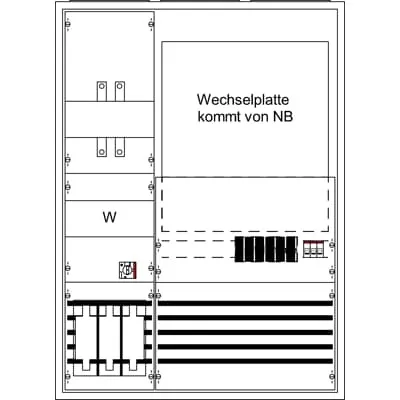

ABB 2CPX032141R9999 Measurement Cabinet - IP31

Fully assembled, pre-wired current and voltage paths up to the X1 test terminal streamline field work. This reduces wiring time, minimizes termination errors, and shortens commissioning for metering and transformer panels. Ideal for panel rooms where quick deployment and repeatable results matter. IP31 protection and Class II isolation deliver safer operation and regulatory comfort. The cabinet design supports EN 61439-1 compliance and CE declarations, helping system integrators avoid rework during audits. In practice, users benefit from predictable safety performance in indoor installations with moderate dust exposure. Cu busbars 12 x 5 mm and a 5-pole lower connection space enable efficient current distribution and fault path clarity. This improves thermal management and reduces resistance losses, supporting higher reliability in continuous operation environments. The busbar strategy also simplifies future capacity upgrades without replacing components. Powder-coated sheet steel housing (RAL 9016) provides durable, corrosion-resistant protection with a clean industrial appearance. This reduces maintenance cycles and keeps enclosures looking and performing consistently across years of service in manufacturing environments. 252 DIN units and three panel widths enable modular configuration and scalable metering layouts. The 3-wide system supports flexible placement of meters, protection devices, and control gear, improving space utilization. The option to locate components on the meter space with busbars simplifies wiring architecture and serviceability. Expansion options are available laterally, and the cabinet is compatible with ABB OT250/3-pole devices for seamless upgrades. This reduces total cost of ownership by allowing capacity growth without full replacement, while maintaining established installations and wiring schemes.
