ABB 2CPX032263R9999 Measurement cabinet - IP31
Part Number: 2CPX032263R9999
Quick Summary
Measurement cabinet ABB 2CPX032263R9999 delivers a ready-to-install enclosure for metering and control panels in industrial facilities. This design minimizes on-site assembly challenges, reduces wiring errors, and speeds metering upgrades by delivering a pre-assembled, ready-to-mount solution. The unit adheres to EN 61439-1 with CE marking and offers IP31 protection, supporting Class II (double insulated) construction for safer operation. Additional RoHS and REACH compliance further reduce procurement risk and waste. By combining durable steel with a powder-coated finish in RAL 9016, it delivers reliable performance in harsh environments while maintaining a professional appearance. For utilities and process plants, this cabinet translates to faster commissioning and lower lifecycle costs through predictable, compliant metering installations.
Product Information
Extended Description

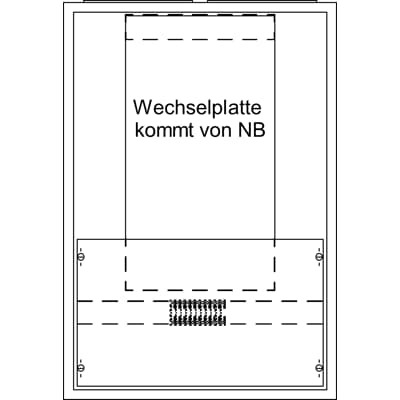

2CPX032263R9999 ABB: Measurement cabinet, series A, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, transparent single-leaf door, with Swivel handle, door hinge right or left, dimensions in mm (H x W x D): 800 x 550 x 215, not pre-wired, Earthing system TN-S, -pole, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), Grid unit 5 GU, Overall height 1, panel width 2, Space units 120, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
120
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
550 mm
Product Net Height
800 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
16.542 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.204 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction mounting plate for current transformer | Mounting instruction A-Schrank | Mounting instruction ZH228/227/203
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS453
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Pre-assembled for installation of metering exchange plates delivers immediate on-site readiness and reduces labor time, improving project timelines and lowering installation costs. Business impact: faster commissioning, fewer wiring mistakes, and enhanced project predictability; application: meter exchanges and grid metering installations in utilities and process industries. The enclosure uses powder-coated steel in RAL 9016 with IP31 protection and Class II insulation, providing durable, safe operation in exposed environments. This combination reduces maintenance cycles and helps meet strict safety standards, giving procurement teams confidence in long-term reliability and compliance. The lower connection space with DIN rails supports organized wiring, easy retrofits, and scalable expansion for metering transformers or additional components. With 120 DIN units and three modular widths, the cabinet adapts to evolving metering architectures while minimizing footprint and installation complexity. RoHS and REACH declarations, along with SCIP and WEEE compliance, reduce regulatory risk and ensure responsible end-of-life handling. Overall, the design emphasizes standardization, interoperability, and cost control across asset lifecycles.
Get a Quick Quote for a ABB 2CPX032263R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032263R9999?
Enquire Now
FAQs
This cabinet arrives pre-assembled for mounting metering exchange plates, reducing site wiring and assembly work. Ensure a stable surface mount or partial recessed installation, connect to a TN-S earth system, and verify EN 61439-1 compliance. The unit is powder-coated steel in RAL 9016, IP31 protected, and designed for internal use with a single door.
Key specs include an internal footprint of 800 x 550 x 215 mm, weight around 16.542 kg, 120 DIN placement units, three panel widths, rated operational voltage up to 415 V, and nominal current 0 A. Construction uses sheet steel with powder coating, Class II insulation, and a single door for straightforward access.
Yes. The pre-assembled configuration is designed for installation of metering exchange plates and metering transformers, with a low-depth envelope, DIN rail-equipped lower space, and DIN units optimized for metering hardware. It supports rapid upgrades and modular add-ons while maintaining compliance with relevant standards.
The cabinet complies with EN 61439-1, carries CE marking, and aligns with RoHS and REACH requirements. It also references SCIP and WEEE classifications, underpinning regulatory compliance and responsible product lifecycle management for industrial applications.
Pre-assembled metering components reduce on-site labor and commissioning time, delivering faster ROI. The durable powder-coated steel enclosure minimizes corrosion-related maintenance, while standardized DIN rails and modular width options simplify future upgrades and spares management, ensuring predictable performance and lower lifecycle costs.
