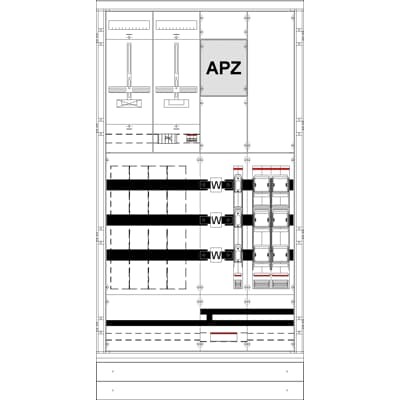

ABB 2CPX032268R9999 Meter Cabinet - IP54 Class I
Part Number: 2CPX032268R9999
Quick Summary
ABB 2CPX032268R9999 Measurement cabinet enables safe, compact housing for metering transformers in indoor distribution setups. Maintenance teams often struggle with wiring complexity, space constraints, and aging enclosures that slow project timelines. This cabinet complies with EN 61439-1/2 and carries CE conformity while delivering IP54 protection and a grounded Class I system, providing robust safety in demanding environments. Built to be pre-wired to DSO requirements and powder-coated in RAL 7035, it supports rapid installation and long service life. With a 504 DIN unit footprint, accessible busbars, and CT mounting options, it delivers reliable energy metering infrastructure with lower lifecycle costs and predictable performance.
Product Information
Extended Description
2CPX032268R9999 ABB: Measurement and metering transformer cabinet, series pro Energy, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 600 A, Rated current of the assembly of switchgear and controlgear InA 600 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, door hinge right and left, dimensions in mm (H x W x D): 2113 x 1100 x 448, Earthing system TN-C-S, 5-pole, Number of reserve spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 60 x 10 mm 5-pole, current transformer range CT mounting pad with CT rail 170 x 40 x 10 mm, parting point after the current transformer 2 Fuse disconnector NH2/400 A, Grid unit 12 GU, Overall height 8, panel width 4, cabinet depth 4, Space units 504, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
600 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
504
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
4
Product Net Width
1100 mm
Product Net Height
2113 mm
Product Net Depth / Length
448 mm
Section Width
4
Product Net Weight
281.861 kg
Built-In Depth (t2)
448 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
293.135 kg
Replacement Product ID (NEW)
2CPX056083R9999
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZ101-105_107_110-112
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4220
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Powder-coated steel enclosure delivers long-term corrosion resistance and a clean, professional appearance in indoor installations. This translates to reduced maintenance, lower replacement costs, and safer operation in utility rooms or industrial plants. Pre-wired configuration aligned with DSO requirements speeds up installation, minimizes field wiring errors, and accelerates project timelines while maintaining strict safety standards. Integrated Cu busbars (60 x 10 mm) and CT mounting pads (170 x 40 x 10 mm) simplify precise metering connections and improve measurement accuracy, supporting reliable energy management and compliance. The cabinet's dimensions (2113 mm x 1100 mm x 448 mm) and 504 DIN units offer scalable space for meter panels and cross connections, enabling future expansion without replacing the enclosure. EN 61439-2 compliance, CE marking, RoHS/REACH declarations, and a powder-coated finish align with industry regulations and sustainability goals, reducing risk during audits and end-of-life handling. Quick sealable connections and a double door design add installation convenience and ongoing access without compromising safety or protection.
Get a Quick Quote for a ABB 2CPX032268R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032268R9999?
Enquire Now
FAQs
The cabinet is designed for surface mounting and includes a double door with hinge options for flexible access. It is pre-wired to meet DSO requirements, reducing on-site wiring time. Verify clearance for 2113 mm height and 1100 mm width, secure the enclosure to a solid subframe, and connect the grounded TN-C-S earth system before energizing the asembly.
Key specs include a maximum operational voltage of 415 V, rated current of 600 A, 5 poles, IP54 protection, and a 504 DIN unit capacity. The enclosure is powder-coated steel (RAL 7035), with Cu busbars (60 x 10 mm) and a CT mounting pad (170 x 40 x 10 mm) to support precise metering connections.
Yes. The 2CPX032268R9999 is a measurement and metering transformer cabinet designed for indoor energy metering cross sections, with a robust 2113 mm x 1100 mm x 448 mm footprint, 504 DIN units, and pre-wired configuration tailored for metering panels in industrial plants, distribution substations, and data centers.
It complies with EN 61439-2 (and EN 61439-1 for general requirements), bears CE conformity, is RoHS compliant, and includes REACH declarations. It also features IP54 protection and a grounded Class I enclosure, supporting safe operation in indoor environments and simplifying regulatory audits.
Pre-wiring reduces field wiring time and on-site labor, accelerating project delivery. The powder-coated steel enclosure resists corrosion, extending service life, while CE/RoHS/REACH compliance minimizes risk of regulatory setbacks. Combined, these factors lower total cost of ownership through predictable maintenance and longer intervals between replacements.
