ABB 2CPX032269R9999 Metering Cabinet Pro Energy - IP54
Part Number: 2CPX032269R9999
Quick Summary
Metering cabinet solutions enable centralized power metering and control in electrical distributions for industrial facilities. Engineers often face lengthy pre-assembly, space constraints, and inconsistent earthing when upgrading meter panels, increasing project risk. The ABB 2CPX032269R9999 measurement and metering cabinet delivers EN 61439-1 and EN 61439-2 compliance, IP54 protection, Class I grounding, and a 1000 A rating for reliable, scalable power management. Pre-wired configuration, powder-coated sheet steel housing in RAL 7035, plus busbar and CT mounting provisions, reduce installation time while improving safety and long-term lifecycle costs. Robust RoHS, REACH declarations and SCIP pairing support responsible procurement and regulatory compliance across industrial and utility environments.
Product Information
Extended Description

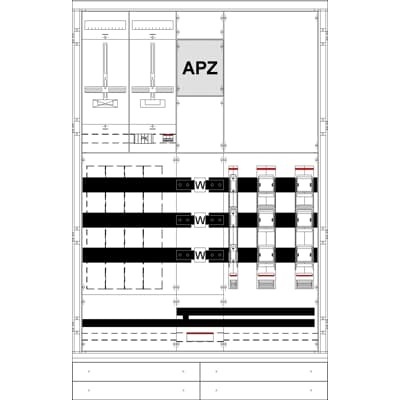

2CPX032269R9999 ABB: Measurement and metering transformer cabinet, series pro Energy, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 1000 A, Rated current of the assembly of switchgear and controlgear InA 1000 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, door hinge right and left, dimensions in mm (H x W x D): 2113 x 1350 x 448, Earthing system TN-C-S, 5-pole, Number of reserve spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 80 x 10 mm 5-pole, current transformer range CT mounting pad with CT rail 250 x 40 x 10 mm, parting point after the current transformer 2 Fuse disconnector NH2/400 A, Grid unit 12 GU, Overall height 8, panel width 5, cabinet depth 4, Space units 720, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
1000 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
720
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
5
Product Net Width
1350 mm
Product Net Height
2113 mm
Product Net Depth / Length
448 mm
Section Width
5
Product Net Weight
328.057 kg
Built-In Depth (t2)
448 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
341.179 kg
Replacement Product ID (NEW)
2CPX056084R9999
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZ101-105_107_110-112
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4221
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled construction and pre-wired components streamline field wiring, dramatically reducing installation time and on-site labor. This translates to lower commissioning costs and quicker return on investment for utilities and large industrial sites. Application examples include measurement panels in meter rooms and switchgear assemblies in manufacturing plants. IP54 protection and Class I grounding enhance safety and reliability in controlled environments, minimizing dust ingress and moisture-related faults while enabling safer operation for maintenance crews. The enclosure supports robust power distribution with Cu busbars 80 x 10 mm and a CT mounting pad, enabling precise current sensing and straightforward integration with metering cross and measurement sensors. Durable powder-coated steel housing in RAL 7035 delivers long lifecycle performance in harsh industrial settings, reducing corrosion-related downtime and maintenance. A clearly defined DIN rail layout with 720 DIN units, 5-pole configuration, and 1 reserve space provides scalable capacity for future expansion and metering needs. Pre-wired to EN 61439-1/2 standards, with a double door and quick-seal connections, simplifies installation while maintaining strict safety and enclosure integrity. Regulatory compliance is reinforced with RoHS, REACH, SCIP, and CE declarations, supporting responsible procurement and regulatory conformity across multiple markets.
Get a Quick Quote for a ABB 2CPX032269R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032269R9999?
Enquire Now
FAQs
The cabinet uses EN 61439-1/2 compliant design, 5P configuration, Cu busbars 80 x 10 mm, CT mounting pad, and space for a single meter cabinet with 720 DIN units. Its pre-wired arrangement and standard TN-C-S grounding simplify integration with existing metering cross, CTs, and pre-wired feeders, reducing retrofit complexity and enabling seamless expansion alongside current switchgear.
Pre-wired to requirements such as DSO specifications lowers field wiring needs, minimizes现场 labor, and accelerates commissioning. The 2113 × 1350 × 448 mm steel enclosure with double doors and quick-seal connections also reduces on-site adjustments and improves enclosure integrity during final installation and commissioning in meter rooms or electrical cabinets.
Key standards include EN 61439-1/2 for low-voltage switchgear and controlgear assemblies, CE declarations, RoHS and REACH compliance, and SCIP for supply chain transparency. These certifications ensure electrical safety, regulatory compliance, and responsible material usage, supporting risk reduction in procurement and long-term operational reliability in industrial environments.
The enclosure offers IP54 protection and Class I grounding, providing reliable dust and water ingress resistance and safe earthing in controlled indoor or sheltered outdoor spaces. For harsher or direct outdoor exposure, consider additional enclosure protection or climate-controlled mounting to maintain performance and extend service life.
Benefits include reduced installation time and field labor, lower failure risk due to a robust, pre-wired design, and longer service intervals thanks to corrosion-resistant powder coating and durable steel housing. Regulatory compliance (RoHS, REACH, SCIP) minimizes procurement risk and potential remediation costs, delivering a favorable long-term return for utilities and industrial operators.
