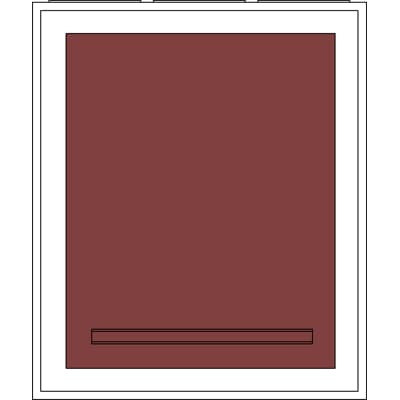

ABB 2CPX032400R9999 Measurement Cabinet - IP31
Part Number: 2CPX032400R9999
Quick Summary
ABB 2CPX032400R9999 measurement cabinet for control panels and meter installations is designed to withstand demanding industrial environments. It provides a robust, ready-to-use enclosure that reduces on-site wiring time while delivering reliable protection for sensitive electronics. This cabinet is built to address common challenges such as inconsistent protection levels, non-standard mounting, and difficult wiring access in busy switchrooms. It aligns with EN 61439-1 and CE declarations for meter panels, with RoHS and REACH compliance supporting regulatory requirements. By combining a powder-coated exterior in Traffic White (RAL 9016) with a top-mount design and modular DIN-rail compatibility, it offers both peace of mind and business value for project timelines and total cost of ownership.
Product Information
Extended Description
2CPX032400R9999 ABB: Measurement cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, transparent single-leaf door, dimensions in mm (H x W x D): 950 x 800 x 215, not pre-wired, Number of transformer meter spaces 1, Meter replacement plate unten eingehängte, oben verschraubte Pertinaxplatte 10 mm, Profilschiene 35 mm/ DIN46227 (Wechselplatte nach TAB A2.02), Note: according TAB NS-Nord 2012 B3.33, Grid unit 6 GU, Overall height 2, panel width 3, Space units 216, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Design
top-mount
Enclosure Type
Measurement cabinet
Enclosure Type of Height
2
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Plug In Meter Terminal
No
Mounting Position
top-mount
DIN Place Units
216
Meter Boards
1
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
36
Product Net Width
800 mm
Product Net Height
950 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
29 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.16 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZH228/227/203
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Fully assembled measurement cabinet with 950 mm x 800 mm x 215 mm external dimensions. Business Impact: Reduces on-site assembly time and error risk, accelerating commissioning for faster time-to-value. Application: Ideal for internal metering and control cabinet installations in industrial facilities. The cabinet comes powder-coated in RAL 9016 (Traffic White) for durable outdoor and indoor use, enhancing longevity in harsh environments. Feature: Isolated (Class II) protection and IP31 rating. Business Impact: Provides double-insulated safety with reliable protection against dust and light splashes, lowering risk of electrical faults. Application: Suitable for restricted-access control rooms and meter sections where heightened safety is essential. Feature: Surface mounted/partially recessed mounting with top-mount design and a single door. Business Impact: Simplifies retrofits and upgrades in existing infrastructure, reducing space constraints and labor costs. Application: Retrofit projects or new builds with space limitations. Feature: DIN-rail compatibility (35 mm) and 216 DIN place units across 3 panel widths. Business Impact: Facilitates flexible internal layouts for meters, relays, and small power electronics, improving organization and maintenance. Application: Metering cabinets and small control panels. Feature: Steel/plastic housing with powder-coated steel sheet construction. Business Impact: Combines mechanical strength with corrosion resistance, minimizing maintenance cycles. Application: Environments requiring long service intervals and robust protection. Feature: Not pre-wired interior and transparent single-leaf door. Business Impact: Allows tailored wiring schemes and quick visual inspection, reducing installation time and error potential. Application: Mission-critical control panels and measurement points. Industry insight: Aligns with industry best practices for modular enclosure design and simplified compliance audits, delivering measurable reductions in commissioning time and lifecycle costs.
