ABB 2CPX032402R9999 Metering transformer cabinet - IP31
Part Number: 2CPX032402R9999
Quick Summary
ABB 2CPX032402R9999 Metering transformer cabinet enables centralized metering for industrial power distribution. Engineers often grapple with space constraints, integration with switchgear, and the need for rapid commissioning in busy control rooms. This cabinet is EN 61439-1 compliant, IP31 rated, and CE-conforming, with a powder-coated steel enclosure in RAL 9016 for durable, maintenance-friendly service. Designed for indoor electrical rooms, it integrates with 5-pole switchgear and meter boards, ensuring reliability across utility and industrial sites.
Product Information
Extended Description

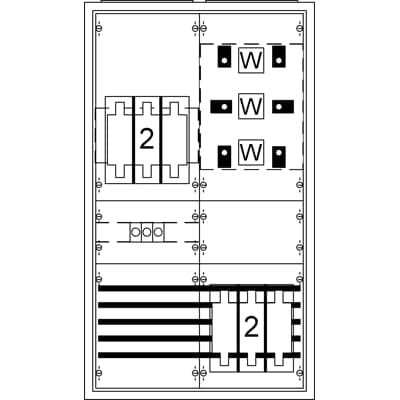

2CPX032402R9999 ABB: Metering transformer cabinet, series A, fully assembled cabinet, Expansion option: Lateral, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 178 A, Rated current of the assembly of switchgear and controlgear InA 178 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, single-leaf door, dimensions in mm (H x W x D): 950 x 550 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Note: according TAB NS-Nord 2012 B3.32, Grid unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
178 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Design
top-mount
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Metering transformer cabinet
Enclosure Type of Height
2
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Plug In Meter Terminal
No
Mounting Position
top-mount
Accessories Available
Yes
DIN Place Units
144
Meter Boards
1
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
950 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
35 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
36.4 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZH228/227/203
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS402SB
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Powder-coated steel enclosure with RAL 9016 finish provides corrosion resistance and a professional aesthetic. Business Impact: Reduced maintenance costs and longer service life in harsh plant environments. Application: Ideal for indoor metering cabinets in manufacturing and data centers that require consistent appearance and durability. Feature: EN 61439-1 compliance plus IP31 protection and Class II isolation. Business Impact: Meets essential safety and regulatory criteria, enabling accelerated approvals and safer operations. Application: Suitable for controlled indoor spaces where metering cabinets house critical meters and switchgear. Feature: Generous dimensions and DIN-space: 950x550x215 mm, 24 modular spacings, 144 DIN places. Business Impact: Flexible metering layouts and future expansion without relocation. Application: Retrofit projects and new builds needing scalable meter and busbar arrangements. Feature: Electrical layout includes Cu busbars (2 x 12 x 5 mm), 5-pole configuration, NH2/400 A fuse base, and N+PE connection options (M12). Business Impact: Reliable power distribution, simplified wiring, and robust fault protection. Application: Metering and distribution panels with clear busbar routing. Feature: Material and finish include sheet steel construction with powder-coating; 35 kg net weight; compatibility with accessories and a top-mount mounting position. Business Impact: Fast installation with fewer parts and straightforward accessory upgrades. Application: Standardized enclosures that fit ABB accessories and modular control gear.
Get a Quick Quote for a ABB 2CPX032402R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032402R9999?
Enquire Now
FAQs
The cabinet is designed to meet EN 61439-1 requirements and supports TN-S earthing, with a 5-pole configuration and N and PE connections via M12. Its top-mount design and busbar-ready layout simplify integration with existing switchgear and meter boards, enabling compliant, reliable indoor installations in industrial environments.
Key specs include a rated operational voltage up to 415 V, 50/60 Hz operation, rated current of 178 A, 5 poles, IP31 protection, and EN 61439-1 compliance. The enclosure accommodates 144 DIN units, Cu busbars (2 x 12 x 5 mm), and NH2/400 A fuse bases, supporting robust metering and distribution tasks.
No. The IP31 rating indicates indoor, non-weatherproof use. For outdoor or harsh environments, additional protective housing or a higher IP rating enclosure would be required. Ensure installation in a controlled electrical room with proper ventilation and access control.
It provides a dedicated meter space with busbar routing, a 5-pole configuration, and fuse bases for protection. N and PE terminals (M12) are included, along with a top-mount design that simplifies wiring, while 144 DIN slots offer room for expansion and future metering modules.
The powder-coated steel finish (RAL 9016) resists corrosion, reducing maintenance costs. EN 61439-1 compliance supports long-term reliability and safer operation, while the modular DIN space and busbar system streamline commissioning, upgrades, and spare-part compatibility, delivering reduced downtime and faster project ROI.
