ABB 2CPX032405R9999 Metering Transformer Cabinet - IP31
Part Number: 2CPX032405R9999
Quick Summary
ABB 2CPX032405R9999 metering transformer cabinet provides compact housing for metering modules in electrical distribution. Engineers often struggle with integrating meters and switchgear while meeting space constraints and protection requirements. Certified to CE conformity with EN 61439-1/EN 61439-2 and IP31 protection (Class II isolation), it combines rugged construction with safety. This enclosure is designed for streamlined procurement and faster deployment, supporting scalable energy metering projects. For maintenance and expansion, it aligns with standard enclosures and electrical infrastructure practices. With the metering module pre-wired and busbars arranged for 5-pole configurations, field wiring time is reduced. The rugged powder-coated finish ensures durability in typical industrial environments.
Product Information
Extended Description

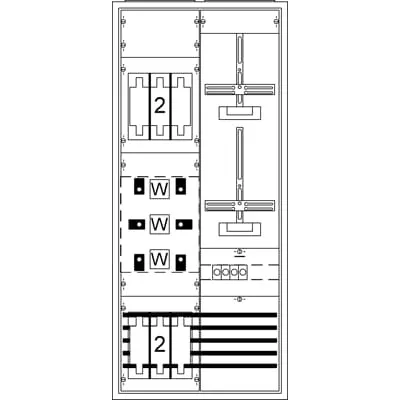

2CPX032405R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, single-leaf door, dimensions in mm (H x W x D): 1250 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Metering wiring, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, Secondary wiring voltage Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Note: according TAB NS-Nord 2012 B3.08, Grid unit 8 GU, Overall height 4, panel width 2, Space units 192, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Design
top-mount
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Plug In Meter Terminal
No
Mounting Position
top-mount
Accessories Available
Yes
DIN Place Units
192
Meter Boards
1
Meter Control Devices
1
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
1250 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
47 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
48.88 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZH228/227/203
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS405SB
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Fully assembled cabinet with a dedicated metering cross simplifies integration by reducing on-site assembly steps. This means faster project start-ups, fewer field errors, and consistent performance across installations. In practice, operators deploy reliable metering arrays in utility and industrial plants with confidence that EN 61439-1 compliance is already baked in. Powder-coated steel construction in RAL 9016 provides durable, corrosion-resistant housing that meets IP31 isolation requirements. The steel/plastic enclosure supports robust thermal management and long service life in harsh environments, while maintaining a clean, standard appearance across installations. Top-mount design and surface-mounted/partially recessed mounting offer flexible installation options for both new builds and retrofits. This compatibility reduces required cabinet depths in existing switchgear rooms and simplifies mounting alignment with surrounding equipment. Metering module is pre-wired, and secondary wiring uses standardized H07V-U cables, cutting on-site wiring errors and commissioning time. The copper busbars (2 x 12 x 5 mm, 5-pole) deliver low-voltage drop and high reliability for shared metering circuits. Designed with 192 DIN space units and a 1250 x 550 x 215 mm footprint, it accommodates one meter cabinet and one meter control device, supporting scalable metering layouts. Built-in space for a transformer meter and a space for busbars helps simplify future expansions. Compliance coverage includes RoHS, REACH, and WEEE, ensuring regulatory readiness across markets. The TN-S earthing system further enhances safety and reduces grounding issues in complex installations.
Get a Quick Quote for a ABB 2CPX032405R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032405R9999?
Enquire Now
FAQs
This cabinet is designed for top-mount installation with surface mounted or partially recessed mounting. Ensure a 1250 x 550 x 215 mm footprint clear of obstructions, provide TN-S earth connection, and allocate space for the 192 DIN units. Pre-wired metering module minimizes on-site wiring and reduces commissioning time while meeting EN 61439-1 requirements.
A 210 A rated current sets the limit for combined load of meter cabinets and associated switchgear. Plan conductor sizing, fuse bases, and busbars (2 x 12 x 5 mm) to handle peak inrush without overheating. This rating supports compact layouts while ensuring safety and reliability in industrial distribution applications.
Yes, the cabinet supports TN-S earthing as part of its safety design. It includes copper busbars configured for a 5-pole arrangement, enabling organized, low-impedance paths for metering and protection circuits. This layout simplifies wiring, reduces potential fault paths, and improves reliability across metering installations.
The metering module is pre-wired, with secondary wiring using standard H07V-U cables. This reduces field wiring errors and speeds up commissioning. The design adheres to EN 61439-1/EN 61439-2 standards for safe and compliant distribution cabinets, and the assembly supports CE conformity and RoHS/REACH compliance.
The cabinet complies with RoHS as per EU Directive 2011/65/EU and 2015/863, and carries a REACH declaration for substances above 0.1 mass%. WEEE classification is 4. Large Equipment, indicating end-of-life handling as a large electrical device. These certifications simplify cross-market procurement and regulatory reporting.
