ABB 2CPX032614R9999 Meter Cabinet for Metering - IP31
Part Number: 2CPX032614R9999
Quick Summary
ABB 2CPX032614R9999 Meter Cabinet for Metering provides a ready-to-install enclosure for metering transformers and measurement equipment used in utility and industrial power distribution. Engineers often wrestle with pre-wired or incompatible panels that waste time on field modifications. This design emphasizes CE conformity, IP31 protection, and Class II isolation to ensure safe, compliant operation in demanding environments. The powder-coated steel housing in RAL 9016 delivers durability, while the pre-assembled construction reduces site risk and accelerates commissioning. With flexible busbar options and a dedicated space for metering exchange plates KA4034–KA4039, it supports scalable metering strategies and faster ROI.
Product Information
Extended Description

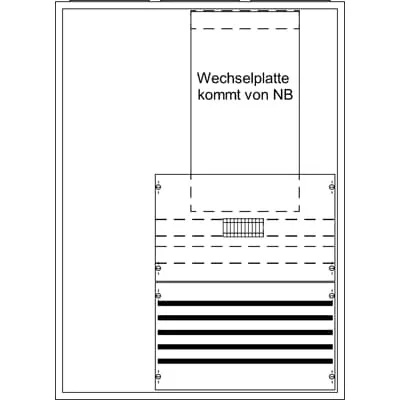

2CPX032614R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, with Swivel handle, door hinge right and left, dimensions in mm (H x W x D): 1100 x 800 x 215, not pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), busbar system Cu busbars 12 x 5 mm 5-pole, Note: metering transformerboard KA4034-KA4039 required, incomer housing EK220 recommended, possible busbar terminal, connection set for voltage path and current required, Grid unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
3
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
252
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1100 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
28.953 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.111 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction mounting plate for current transformer | Mounting instruction A-Schrank | Mounting instruction ZH228/227/203 | Mounting instruction KS.. ZX91
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS457
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Pre-assembled for installation of metering exchange plates KA4034-KA4039. Business Impact: Speeds up commissioning and reduces field wiring errors by delivering a ready-to-mount metering module. Application: Ideal for utility metering panels and industrial measurement cabinets, enabling straightforward upgrades without rewiring. Feature: EN 61439-1 compliance, IP31 protection, and Class II isolation. Business Impact: Enhances safety and regulatory conformity, lowering project risk and inspection time. Application: Suitable for indoor distribution enclosures in both utilities and process industries. Feature: Powder-coated steel housing in RAL 9016. Business Impact: Improves environmental resistance and maintenance economics, extending cabinet life in typical indoor plants. Application: Units deployed in controlled indoor environments where color-coding aids organization. Feature: Cu busbars 12 x 5 mm and a 5-pole lower connection space. Business Impact: Ensures reliable current paths and simplifies the wiring of metering networks. Application: 5-pole metering and distribution configurations with scalable busbar layouts. Feature: Dimensions 1100 x 800 x 215 mm with 252 DIN units and 3 panel widths. Business Impact: Fits standard layouts and supports modular expansion, streamlining installation in constrained spaces. Application: Control rooms and switchgear assemblies where space planning matters. Feature: Quick-seal connections and accessory availability. Business Impact: Reduces commissioning time and maintenance downtime while enabling future upgrades. Application: Retrofit projects and modular metering expansions in evolving facilities. Feature: Not pre-wired but pre-assembled for metering plate integration. Business Impact: Provides precise metering configuration and compatibility with KA4034-KA4039 modules. Application: Metering upgrades and new installations where grid modernization is planned.
Get a Quick Quote for a ABB 2CPX032614R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032614R9999?
Enquire Now
FAQs
The cabinet is designed as a standalone measurement and metering transformer enclosure with a 1100 x 800 x 215 mm footprint and 252 DIN units, supporting surface or partial recessed mounting. It integrates with standard metering exchange plates KA4034–KA4039, enabling straightforward retrofits or upgrades within existing EK220-based installations while preserving safe TN-S earthing paths.
Key specs include a maximum operational voltage of 415 V, a rated current of 250 A, 5 poles (5P), and an IP31 protection class with Class II isolation. The enclosure accommodates a 5-pole lower connection space and Cu busbars sized 12 x 5 mm, ensuring reliable current paths for metering circuits.
Yes. The cabinet carries EU Declaration of Conformity for meter panels, confirming CE compliance. RoHS and REACH statements are documented, with a declared RoHS status and REACH information indicating declarations regarding substances and mass percentages in the product. This supports regulatory acceptance in many regions.
The pre-assembled design reduces field labor and risk by delivering a ready-to-mount metering exchange plate-ready cabinet. Powder-coated steel provides durability, while the integrated busbar system and pre-defined space for metering boards streamline upgrades, minimize on-site wiring, and shorten project timelines.
Ideal for utility metering rooms, industrial power distribution panels, and panel builders requiring a compliant, durable enclosure for metering transformers. It supports scalable metering architectures, is suitable for indoor installations, and helps standardize metering panels across substations, factories, and process plants.
