ABB 2CPX032615R9999 Metering Cabinet - IP31 Class II
Part Number: 2CPX032615R9999
Quick Summary
Measurement and metering transformer cabinet is a rugged ABB enclosure designed to house metering and transformer components for utility and industrial facilities. This solution addresses the common pain points of lengthy on-site wiring, inconsistent layouts, and pacing project schedules by delivering a ready-to-install cabinet with a clear metering space and busbar infrastructure. It carries CE conformity, RoHS and REACH declarations, plus IP31 protection and isolated Class II construction to support safety, reliability, and regulatory compliance. The product also integrates with KA4034-KA4039 metering boards and features pre-assembled options and DIN rail space that align with evolving metering needs. In short, it enables faster deployment, consistent quality, and reduced lifecycle costs for metering projects.
Product Information
Extended Description

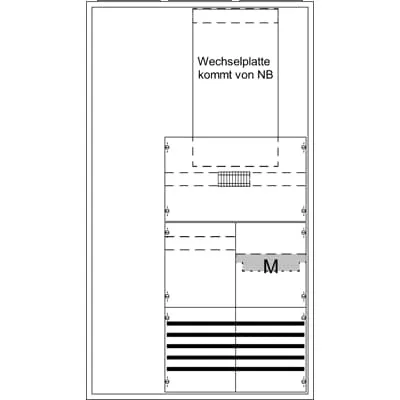

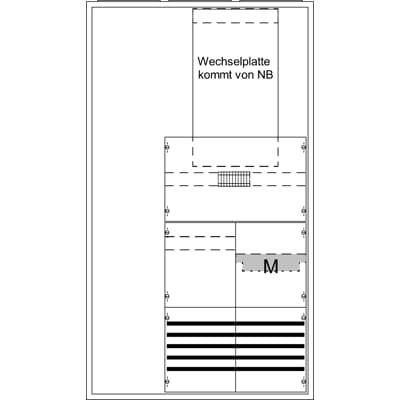

2CPX032615R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, with Swivel handle, door hinge right and left, dimensions in mm (H x W x D): 1400 x 800 x 215, not pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), busbar system Cu busbars 12 x 5 mm 5-pole, Note: metering transformerboard KA4034-KA4039 required, incomer housing EK220 recommended, possible busbar terminal, connection set for voltage path and current required, Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
5
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
324
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1400 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
35.842 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
37.276 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction mounting plate for current transformer | Mounting instruction A-Schrank | Mounting instruction ZH228/227/203 | Mounting instruction KS.. ZX91
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS458
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: Pre-assembled for installation of metering exchange plates KA4034-KA4039 reduces field assembly time and minimizes wiring errors, delivering faster commissioning and lower labor costs in substations and industrial metering rooms. Feature → Business Impact → Application: IP31 protection and Isolated (Class II) construction enhance personnel safety and equipment protection, supporting compliance with electrical safety standards in harsh plant environments. Feature → Business Impact → Application: Powder-coated sheet steel enclosure in RAL 9016 (Traffic White) delivers durable, weather-resistant finishes that reduce maintenance cycles in outdoor or semi-exposed installations. Feature → Business Impact → Application: Cu busbars (12 x 5 mm) and a 5-pole lower connection space improve reliability and current carrying capacity, enabling safe meter exchanges and simplified fault isolation across 0–250 A loads. Feature → Business Impact → Application: 324 DIN place units and 3 panel widths provide flexible mounting density for meters, current transformers, and auxiliary devices, supporting scalable metering architectures in multi-tenant facilities. Feature → Business Impact → Application: Surface-mounted/partially recessed mounting and double door with swivel handle streamline installation and service access, reducing downtime during maintenance and meter replacement. Feature → Business Impact → Application: EN 61439-1 compliance and pre-wired options for voltage/current paths help ensure regulatory adherence and reduce integration risk with KA4034-KA4039 metering boards.
Get a Quick Quote for a ABB 2CPX032615R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032615R9999?
Enquire Now
FAQs
The cabinet supports surface-mounted or partially recessed mounting, with a double door and swivel handle for easy access. It is pre-wired for metering exchange plates KA4034-KA4039 and designed for straightforward on-site integration with existing switchgear.
Key specs include rated operational voltage up to 415 V, rated current of 250 A, 5 poles (5P), IP31 protection, and isolated Class II construction. It is compatible with Cu busbars (12 x 5 mm) and is prepared for meter spaces with busbar integration.
Yes. The enclosure is pre-assembled for installation of metering exchange plates KA4034-KA4039, with a meter space designed for busbar integration and a 324 DIN unit capacity to accommodate required metering hardware.
The cabinet complies with CE conformity and RoHS/REACH declarations, including SCIP and WEEE considerations for large equipment, ensuring regulatory alignment for European markets and responsible material management.
The combination of pre-assembled features, durable powder-coated finish, and standardized DIN space reduces installation time, minimizes maintenance intervals, and lowers lifecycle costs by delivering safer, compliant metering infrastructure with scalable options.
