ABB 2CPX032631R9999 Residential Incomer Cabinet - IP54
Part Number: 2CPX032631R9999
Quick Summary
ABB 2CPX032631R9999 residential incomer cabinet provides a compact, ready-to-install main-entry distribution enclosure for building electrical systems. Installing this cabinet helps reduce on-site assembly time and minimizes wiring complexity in tight spaces. It delivers CE conformity, IP54 protection, and EN 61439-1 compliance, ensuring safe, compliant operation in demanding environments. The powder-coated steel enclosure in RAL 7035, with a double-door design and TN-C-S earthing, supports reliable long-term performance. For system integrators and contractors, the combination of robust protection, accessible DIN rail space, and flexible mounting translates into faster commissioning and lower lifecycle costs while maintaining strict safety standards.
Product Information
Extended Description

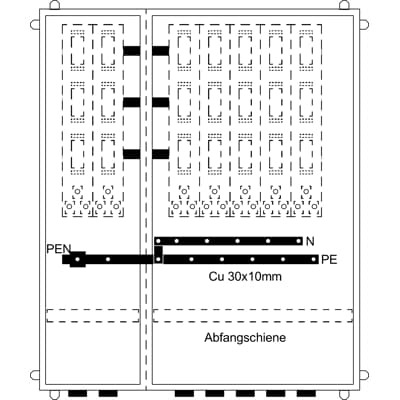

2CPX032631R9999 ABB: Residential incomer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, rated current 500 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 1050 x 350, Earthing system TN-C-S, -pole, Grid unit 8 GU, Overall height 4, panel width 4, Space units 384
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
500 A
Model Number
eHZ
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Residential incomer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
384
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
1050 mm
Product Net Height
1250 mm
Product Net Depth / Length
350 mm
Section Width
4
Product Net Weight
77.526 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
80.627 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction TZ503-506/508/510 | Mounting instruction VS448/VS449 (KS876/KS877)
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: The TwinLine residential incomer cabinet arrives fully assembled, saving on site labor and reducing commissioning time, which translates into lower project costs and faster energization of new facilities. This enclosure provides Class I grounding and IP54 protection, delivering safer operation in environments with dust and moisture exposure, ideal for urban residential feeder installations and light commercial buildings. EN 61439-1 compliance ensures harmonized safety performance across electrical assemblies, supporting regulator-ready installations and easier QA review. The powder-coated steel housing (RAL 7035) offers corrosion resistance and a professional finish for exposed street-side or building exterior locations, reducing maintenance cycles and replacement costs. With 384 DIN place units and a 4U enclosure height, it accommodates substantial discreet distribution, enhancing layout efficiency and future expandability. Compatibility with accessories and a TN-C-S earthing system simplifies integration with existing switchgear and meter panels, addressing common installation objections about retrofit compatibility and grid modernization needs.
Get a Quick Quote for a ABB 2CPX032631R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032631R9999?
Enquire Now
FAQs
This cabinet is surface-mounted and designed for quick, safe installation. Ensure proper alignment with mounting surfaces, connect the TN-C-S earth system to the lower connection space with bus bars, and verify EN 61439-1 compliance during commissioning. Use the 384 DIN unit space efficiently to organize feeders and protection devices, and follow the included mounting instructions for wall fixing and TZ503-506/508/510 sequences.
The cabinet supports a maximum operational voltage of 415 V and a rated current of 500 A. It complies with EN 61439-1, is IP54 protected, and is a Class I grounded enclosure. It is CE declared and RoHS compliant, suitable for indoor installations with robust protection against dust and moisture.
Yes. It is a residential incomer cabinet designed for main-entry distribution in residential settings. It offers 384 DIN place units and a built-in space for bus bars in the lower connection area, supporting modular expansion while maintaining a compact footprint (1250 x 1050 x 350 mm). The double-door design provides easy access for installation and future maintenance.
The cabinet ships with a CE Declaration of Conformity and RoHS/REACH declarations, confirming compliance with European environmental and safety requirements. It also aligns with WEEE category 4 and SCIP regulatory records, supporting responsible end-of-life handling and supply chain transparency.
Its powder-coated steel housing resists corrosion, reducing repainting and refurbishment needs. The enclosure’s designed space and modular compatibility minimize upgrade costs, while the IP54 rating protects sensitive components from dust and splash ingress. Routine maintenance is streamlined by the clear door access and standardized mounting instructions, contributing to lower total cost of ownership over the system’s lifespan.
