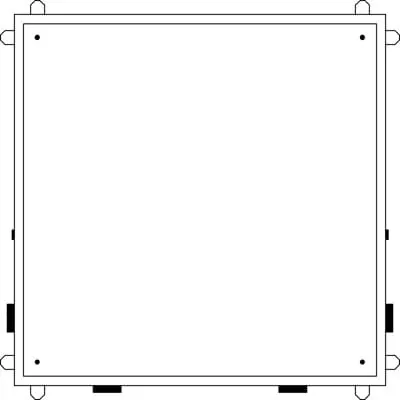

ABB 2CPX032632R9999 Measurement Cabinet - IP54
Part Number: 2CPX032632R9999
Quick Summary
ABB 2CPX032632R9999 Measurement cabinet is a ready-to-install TwinLine enclosure designed for internal use in electrical rooms and control panels. It helps engineers streamline panel assembly with a robust, IP54-rated shell. Common challenges like space constraints, wiring errors, and non-standard mounting are mitigated by its surface-mount design, 800×800 mm footprint, and included mounting brackets. The enclosure complies with EN 61439-1 and CE declarations, while RoHS and REACH certifications provide regulatory assurance for modern facilities. With powder-coated steel in RAL 7035 and a 180 DIN-unit grid, it supports scalable meter and control circuits, reduces lead times, and improves serviceability for ongoing maintenance and changes.
Product Information
Extended Description
2CPX032632R9999 ABB: Measurement cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, not pre-wired, Meter replacement plate KF140SB or KF142, Note: Mounting with included mounting brackets, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Measurement cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
30.459 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
31.677 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction KS41.. / KS42..
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4180
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
The IP54 protection rating protects critical components from dust and moisture, reducing downtime and extending equipment life in demanding indoor environments. In practical terms, installers gain confidence knowing the cabinet can handle factory-floor conditions while keeping sensitive electronics safe. The TwinLine design uses a powder-coated steel enclosure in RAL 7035, offering durable aesthetics, easy cleaning, and long-term corrosion resistance, which lowers maintenance costs and preserves performance in harsh environments. Surface mounting plus included mounting brackets simplify installation and retrofit projects, accelerating time-to-value for control and metering applications. With a 180 DIN-unit grid and 3 panel widths, the cabinet supports scalable layouts for meters, relays, and controllers, enabling flexible configurations without custom fabrication. It is not pre-wired, which lets technicians tailor the wiring layout to exact project needs, reducing waste and rework. Meter replacement plates KF140SB or KF142 are compatible, enhancing future upgrades and serviceability. The enclosure adheres to EN 61439-1, CE, RoHS, REACH, and SCIP standards, ensuring regulatory compliance and a clear path to maintenance and audits. This combination of features provides predictable performance, lower total cost of ownership, and a robust foundation for industrial control panels.
Get a Quick Quote for a ABB 2CPX032632R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032632R9999?
Enquire Now
FAQs
The cabinet is designed for surface mounting and includes mounting brackets to simplify installation. Use the KS41.. / KS42.. mounting instructions, align with the 180 DIN unit grid (Grid unit 5 GU), and mount securely to a stable panel or wall. Note that the cabinet is not pre-wired, so plan your wiring routes before connecting feeders and meters.
Yes. The TwinLine measurement cabinet is sized for internal meter panels and indirect metering configurations. It supports KF140SB or KF142 meter replacement plates and provides a 180 DIN-unit grid for flexible meter placement, enabling scalable metering solutions without custom fabrication.
The cabinet complies with EN 61439-1 and carries CE declarations, with RoHS and REACH compliance. These certifications support regulatory compliance in European facilities and simplify audits, upgrades, and continuous maintenance across control rooms and switchgear environments.
IP54 protection guards internals from dust ingress and limited moisture, reducing failure risk in indoor industrial spaces. The powder-coated steel exterior (RAL 7035) resists corrosion and stains, simplifying cleaning and maintenance while preserving appearance and protective properties over time.
Ideal for internal electrical rooms and control panels requiring robust, modular enclosures for meters and control devices. Its internal mounting grid, compatible meter plates, and non-pre-wired design make it a versatile choice for new installations and upgrades in industrial automation and electrical infrastructure projects.
