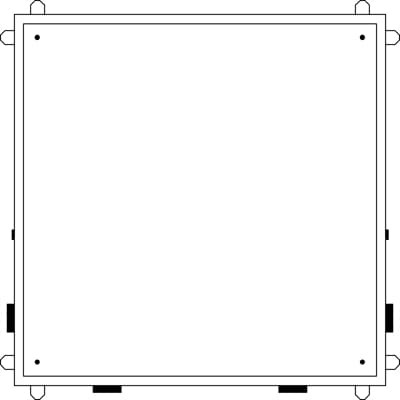

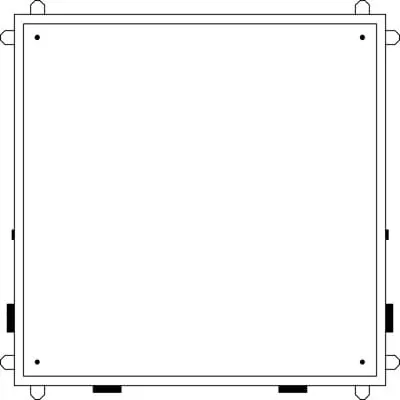

ABB 2CPX032633R9999 Measurement cabinet - IP54
Part Number: 2CPX032633R9999
Quick Summary
ABB 2CPX032633R9999 Measurement cabinet is designed to protect electrical components in industrial automation environments, delivering compact, secure power-distribution solutions. This enclosure helps reduce field wiring time and errors by providing a fully usable, surface-mounted shell with included mounting brackets. The cabinet adheres to EN 61439-1 and carries CE declarations, delivering regulatory confidence, while its IP54 protection guards against dust and moisture on harsh production floors. The powder-coated sheet steel body in RAL 7035 delivers durability and consistent aesthetics, and the 800 x 800 mm footprint with 180 DIN units supports scalable panel layouts. For projects seeking reliable meter cabinets with install-ready features, this solution offers strong business value and predictable deployment.
Product Information
Extended Description
2CPX032633R9999 ABB: Measurement cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, transparent single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, not pre-wired, Meter replacement plate KF140SB or KF142, Note: Mounting with included mounting brackets, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Measurement cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
29.74 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.929 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction KS41.. / KS42..
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4182
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: IP54-rated enclosure with powder-coated steel finish provides robust protection against dust and moisture. Business impact: reduces maintenance interventions and extends service life on busy factory floors. Application: ideal for internal meter cabinet deployments in production lines. Feature: EN 61439-1 compliance and CE declarations ensure regulatory alignment and safety. Business impact: minimizes compliance risk and speeds audit readiness. Application: for automated power distribution cabinets in regulated environments. Feature: 800 x 800 x 275 mm footprint with 180 DIN units and 3 panel widths offers flexible layouts. Business impact: supports scalable control and metering configurations while preserving footprint. Application: use in confined spaces where modularity matters. Feature: surface mounting with included mounting brackets simplifies installation and reduces hardware sourcing. Business impact: faster installation, fewer field errors, and lower total installed cost. Application: suitable for new builds and retrofit projects. Feature: powder-coated, RAL 7035 steel housing with single door provides corrosion resistance and easy maintenance. Business impact: extends service life in dusty or humid environments and improves aesthetics. Application: ideal for production floors and switchgear rooms. Feature: meter cabinet suitability for half indirect metering and compatibility with KF140SB/KF142 replacement plates. Business impact: enables future-proof metering strategies and easier upgrades. Application: meter replacement workflows and compliance-ready panel building. Feature: RoHS and REACH declarations, SCIP registration, and WEEE awareness support sustainable, compliant procurement. Business impact: reduces regulatory risk and supports responsible sourcing. Application: procurement and compliance planning for industrial automation projects.
Get a Quick Quote for a ABB 2CPX032633R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032633R9999?
Enquire Now
FAQs
The 2CPX032633R9999 is designed as a surface-mount measurement cabinet with included mounting brackets, enabling straightforward integration into existing switchgear rooms and distribution panels. Its 800x800 mm footprint and 180 DIN units support scalable layouts, reducing the need for major space redesign during retrofits.
Key specs include a rated operational voltage up to 415 V and an enclosure rated IP54 for protection against dust and moisture. It complies with EN 61439-1 and carries CE declarations, ensuring regulatory safety. The cabinet uses powder-coated sheet steel with a RAL 7035 finish for durability.
Yes. The design supports meter cabinets configured for half indirect metering, with compatibility noted for meter replacement plates KF140SB or KF142, enabling flexible metering and upgrade paths within ABB TwinLine assemblies.
The cabinet carries CE declarations, EN 61439-1 compliance, RoHS information, and REACH declarations. WEEE is acknowledged with the product not being in WEEE scope, and SCIP registration is noted for conflict minerals reporting.
Mounting instructions KS41.. and KS42.. accompany the cabinet for wall fixing and installation guidance. The design includes mounting brackets, a single-leaf door, and a powder-coated finish that reduces maintenance needs on rugged production floors.
