ABB 2CPX032637R9999 Meter Cabinet - 5P, 200A, IP31
Part Number: 2CPX032637R9999
Quick Summary
ABB 2CPX032637R9999 is a measurement and metering transformer cabinet for indoor switchgear installations. Engineers often struggle with space constraints, integration of busbar interfaces, and meeting evolving electrical standards. It meets EN 61439-1, IP31 protection, and Class II insulation, with CE conformity and RoHS/REACH declarations, ensuring compliance across end-user and supplier audits. The powder-coated steel enclosure offers RAL 9016 color and a robust, corrosion-resistant finish, while the 1250 × 800 × 215 mm footprint fits compact switchrooms. The meter space is pre-installed alongside busbar options, TN-S earthing, and CT-rail compatibility, reducing field wiring and commissioning time, accelerating project delivery and uptime.
Product Information
Extended Description

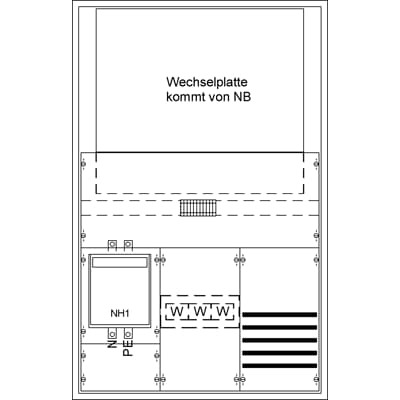

2CPX032637R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 222 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, double door, dimensions in mm (H x W x D): 1250 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, TAE terminal box 1, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), parting point before the current transformer Fuse switch disconnector NH1/250 A, current transformer range Mounting plate for Single-CT with CT-rail, primary wiring 120 qmm, Note: may be required connection set with busbar, to be orderd seperately, Grid unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
288
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
36
Product Net Width
800 mm
Product Net Height
1250 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
45.697 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
47.524 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZX440-ZX445 | Mounting instruction ZH228/227/203
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4218
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: EN 61439-1 compliant measurement and metering transformer cabinet protects critical metering panels in indoor switchgear. Business Impact: Provides a standards-based enclosure that simplifies compliance documentation and accelerates approvals. Application: Ideal for utility-scale metering installations and industrial power distribution where reliability and traceability matter. Feature: IP31 protection and Class II insulation create a safe operating envelope in typical indoor environments. Business Impact: Reduces risk of dust ingress and insulation-related faults, lowering maintenance costs. Application: Suitable for meter cabinets in factories, data halls, and control rooms. Feature: Powder-coated steel housing in RAL 9016 delivers durability and a clean, consistent appearance. Business Impact: Extends service life in demanding interiors while minimizing repaint cycles and aesthetic concerns. Application: New-build installations and retrofit projects in harsh indoor spaces. Feature: Meter space with busbar and CT-rail compatibility enables quick wiring and scalable metering configurations. Business Impact: Cuts commissioning time and labor costs, increases installation predictability. Application: Metering transformer configurations with single or multiple current transformers. Feature: TN-S earthing, 5-pole design enhances grounding reliability and safety. Business Impact: Improves fault clearance performance and protects personnel. Application: Standard industrial and utility environments with TN-S grounding schemes. Feature: Pre-assembled components and modular dimensions optimize space and installation logistics. Business Impact: Reduces on-site assembly time, limits field errors, and supports faster project handover. Application: Indoor rack or wall-mounted switchgear rooms needing compact, compliant enclosures. Feature: RoHS, REACH, SCIP and WEEE compliance support regulatory audits and sustainable end-of-life planning. Business Impact: Mitigates regulatory risk and supports corporate ESG goals. Application: European projects requiring documented environmental compliance.
Get a Quick Quote for a ABB 2CPX032637R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032637R9999?
Enquire Now
FAQs
Yes. The cabinet includes a mounting plate for single CT with CT-rail provision, enabling straightforward integration of metering transformers and busbar interfaces. This compatibility supports scalable metering configurations while reducing additional fabrication or on-site modifications.
Key specifications include a rated operational voltage up to 415 V, rated current of 200 A, 5 poles (5P), IP31 protection, and EN 61439-1 compliance. The enclosure supports a meter space with busbar, TN-S earthing, and a 1250 × 800 × 215 mm footprint for indoor installations.
This cabinet is designed for indoor switchgear rooms, control centers, and industrial facilities requiring reliable metering and transformer cabinet solutions. Its compact footprint and pre-assembled features make it suitable for data centers, manufacturing plants, and utility substations with indoor metering needs.
The cabinet is EN 61439-1 compliant, IP31-rated, and Class II insulated. It carries CE conformity with RoHS and REACH declarations, is listed under WEEE category 4 for large equipment, and aligns with SCIP registrations for end-of-life traceability.
Maintenance is minimized by a powder-coated steel enclosure and durable build, reducing corrosion-related upkeep. ROI improves through faster installation, reduced field wiring time due to busbar/meter space readiness, and regulatory-compliant design that facilitates quicker audits and safer, longer service life.
