ABB 2CPX032651R9999 Residential Incomer Cabinet - IP54
Part Number: 2CPX032651R9999
Quick Summary
Residential incomer cabinet from ABB interfaces power supply to switchgear in commercial facilities. It helps operators avoid field wiring conflicts and downtime by delivering a rugged, IP54-rated enclosure designed for indoor installation. This cabinet is CE-compliant with EN 61439-1 expectations and built as a grounded Class I system, providing clear earthing and safe operation. With a powder-coated sheet steel body in RAL 7035, it blends reliable performance with consistent aesthetics while aligning with RoHS and REACH requirements. For engineering teams, the unit delivers predictable integration with TwinLine configurations and scalable space planning for meter cabinets and main distribution.
Product Information
Extended Description

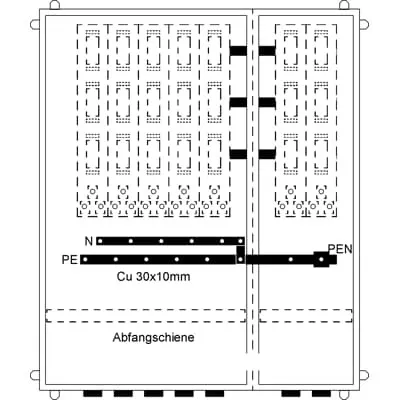

2CPX032651R9999 ABB: Residential incomer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 500 A, Rated current of the assembly of switchgear and controlgear InA 500 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 1050 x 350, Earthing system TN-C-S, -pole, Grid unit 8 GU, Overall height 4, panel width 4, Space units 384
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
500 A
Model Number
eHZ
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Residential incomer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
384
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
1050 mm
Product Net Height
1250 mm
Product Net Depth / Length
350 mm
Section Width
4
Product Net Weight
73.342 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
76.276 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature 1: Fully assembled residential incomer cabinet series TwinLine reduces on-site assembly time and ensures IP54 protection and a grounded Class I system. Business impact: faster deployment, fewer field wiring errors, and lower total installed cost. Application: internal power distribution in commercial facilities with switchgear requirements. Feature 2: Powder-coated powder-coated steel enclosure in RAL 7035 provides durable corrosion resistance and long service life. Business impact: lower maintenance, consistent appearance, and extended watchdog intervals. Application: indoor electrical infrastructure exposed to typical facility conditions. Feature 3: Generous space and clear layout with 1250 x 1050 x 350 mm dimensions, 384 DIN units, and 4 panel widths support flexible configuration of busbars and control gear. Business impact: improved wiring clearance, easier upgrades, and scalable capacity. Application: main incoming distribution and meter cabinet integration. Feature 4: Lower connection space with bus bar and TN-C-S earthing enables straightforward wiring and robust protection. Business impact: faster setup, safer routing, and reduced risk of misconnection. Application: centralized power entry for switchgear assemblies. Feature 5: EN 61439-1 compliance, CE declaration, RoHS/REACH conformity, and WEEE/SCIP awareness provide regulatory certainty. Business impact: compliant procurement, smoother audits, and reduced risk of non-conformance. Application: European markets and regulated installations such as data centers and manufacturing lines.
Get a Quick Quote for a ABB 2CPX032651R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032651R9999?
Enquire Now
FAQs
The cabinet is designed as a TwinLine series unit with a 1250 x 1050 x 350 mm footprint and 384 DIN units, making it straightforward to align with ABB and third-party switchgear when planning a retrofit. Its TN-C-S grounding, double-door arrangement, and 4-panel-width design support seamless integration, simplified wiring, and scalable space for future upgrades.
Verify rated operational voltage up to 415 V, rated current of 500 A, and IP54 protection. The enclosure supports indoor use with a powder-coated steel body in RAL 7035 and a grounded Class I system. Size and layout accommodate 384 DIN units and a built-in depth of 350 mm, ensuring adequate space for busbars and control gear.
Yes, it is suitable for indoor power distribution in both data centers and industrial facilities. EN 61439-1 compliance, CE declarations, and RoHS/REACH conformity support regulated environments. The rugged IP54 enclosure and robust grounding provide reliable protection against dust and water exposure in controlled spaces.
The cabinet carries EN 61439-1 compliance, CE EU Declaration of Conformity, RoHS and REACH declarations, WEEE classification, SCIP registration, and a Category for large equipment. These certifications simplify regulatory audits and procurement for European projects.
With a powder-coated steel housing and durable IP54 protection, maintenance primarily involves periodic visual checks and cleaning of dust ingress. The robust construction minimizes corrosion-related downtime, while the standard icture dimensions and finish support consistent replacement parts. The payback comes from reduced on-site assembly time and safer, compliant operation over the cabinet’s lifecycle.
